Automatic removal of representative average samples

Usage area

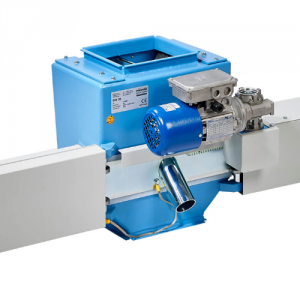

The type DVB samplers are used for the product mixture made in the factory or for outgoing deliveries (loading of transport containers or vehicles), for example. The sampler is installed in a vertical down pipe (pipe incline = 25°). It can take samples in various locations in the process automatically and without a great deal of effort.

Function

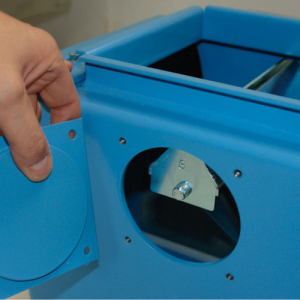

Sampling takes place through a small cassette-like funnel, which has a removal gap at the top. This opening is automatically led through the flow of product over the entire width of the down pipe. A correct sample is taken across the entire cross-section when this occurs, not just at the sides or in the middle. The time between the individual samples is infinitely adjustable.

Technical data

DVB 300, down pipe diameter 76 mm, inlet/outlet 300x300 mm with counter flanges
