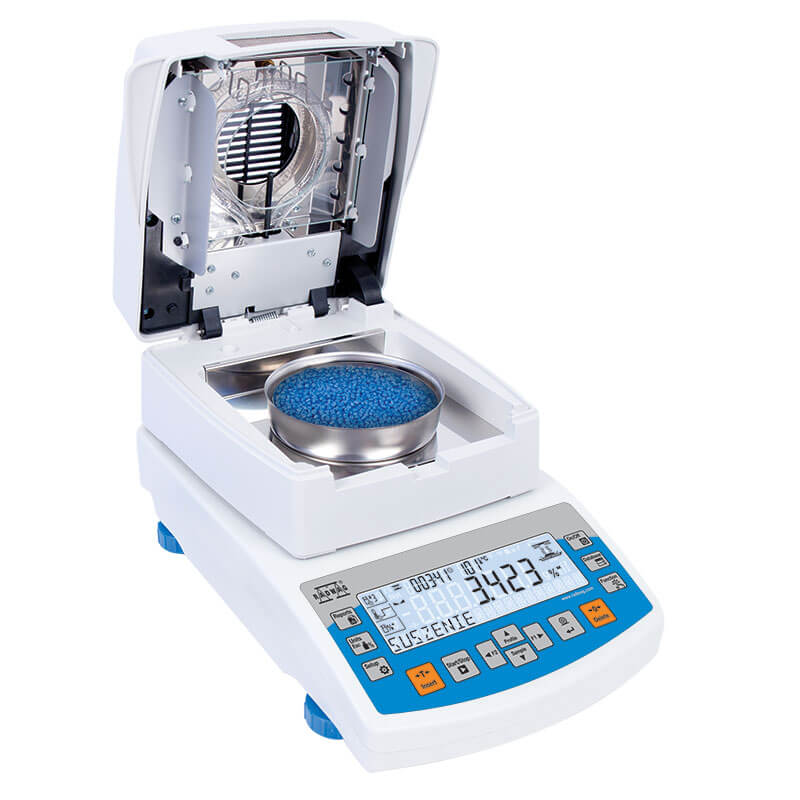

Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA.R series redefines moisture analyzers standards. The MA.R series This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value.

The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones. The MA.R series is enriched with various interfaces: RS232, USB type A, USB type B and Wi-Fi®. The moisture analyzer is housed in a plastic casing.

Databases: Information system of R series moisture analyzers is based on 6 databases, allowing many operators to operate product database comprising many samples. Collected measurements may be subjected to subsequent analysis. Collected data is registered in 6 databases: Users (up to 10 users) Products (up to 1000 products) Weighings (up to 1000 weighings) Tares (up to 100 tares) Programs (up to 100 drying programs) Drying process reports (up to 1000 reports) The results The results obtained using the moisture analyzer (the final result of the drying process): % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage, % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated, % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process, g – the sample mass after drying.

Exchange of information within the system is performed by means of USB port on bi-directional basis. It is possible to import and export databases using memory sticks. Direct access to information It is possible to access functions and databases directly, using keyboard soft keys. Database – access to databases Function – access to basic functions F1 and F2 – programmable function keys and menu navigation keys Reports – access to database of drying process reports Profile – access to parameters settings Sample – access to products database


Metrological parameters
Maximum capacity [Max]	110 g
Readability [d]	1 mg
Tare range	-110 g
Adjustment	external
Maximum sample weight	110 g
Heating module	IR emitter
Moisture content repeatability	+/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Moisture content readability	0.001%
Drying temperature range	Max 160 °C

Physical parameters
Leveling system	manual
Display	LCD (backlit)
Maximum sample height	20 mm
Weighing pan dimensions	ø90, h= 8 mm
Packaging dimensions	476×381×346 mm
Net weight	4.8 kg
Gross weight	6 kg

Construction
Protection class	IP 43

Features of use
Display mode	%MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC
Drying method	4 drying profiles (standard, fast, step, mild)
Finish mode	4 modes (automatic, manual, time-defined, user-defined)
Additional functions	sample traceability

Communication interface
Communication interface	RS232¹, USB-A, USB-B, Wi-Fi®

Electrical parameters
Power supply	100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz
Power consumption	4 W
Heating module power	450 W

Environmental conditions
Operating temperature	+10 — +40 °C

SOP – metrological tests
Mass indication control	External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)
Internal adjustment	For .IC models only, GLP report
External adjustment	For all models, GLP report
Drying temperature control	One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer)
Moisture content indication control	Certified MV Test Set
Adjustment	Internal / External adjustment Depending on the type of moisture analyzer, GLP report
Drying temperature adjustment	Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)
