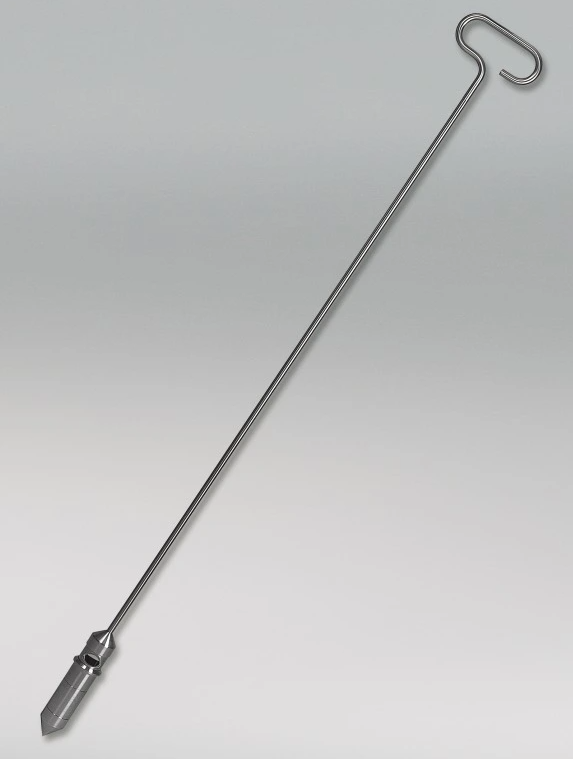

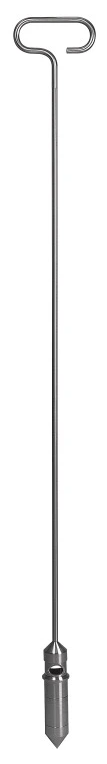

Silo sampler SiloPicker

Chamber volume 100 ml

Length 130 cm

Outer dia. 50 mm

• Stainless steel AISI 316L (1.4404)

The SiloPicker is ideal for taking bulk goods samples from silos. Using the extension rods, samples can be taken from depths down to 350 cm. The insertion depth depends on the density of the bulk goods.

Variante	Chamber volume (ml)	Length (cm)	Outer dia. (mm)	Item number
SiloPicker extension 130 cm	100	130	50	5340-1100
SiloPicker extension 50 cm	100	50	50	5340-1058
SiloPicker extension 100 cm	100	100	50	5340-1008
Transport case	LxWxH	123x25x11		3600-2120

Use

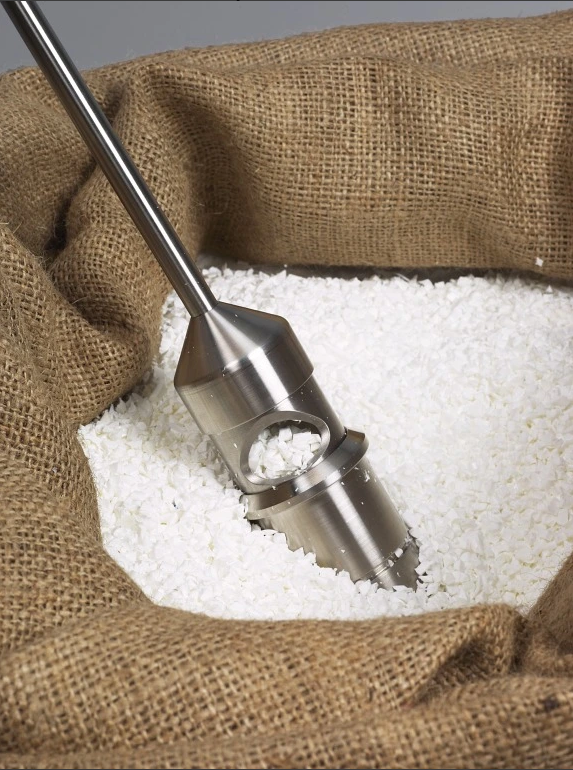

1. Insert SiloPicker into the bulk goods. When this is done, the closure sleeve automatically closes the collection container.
2. When the sampling depth has been reached, the closure sleeve is opened by gently pulling back the SiloPicker, the sampling container is filled.

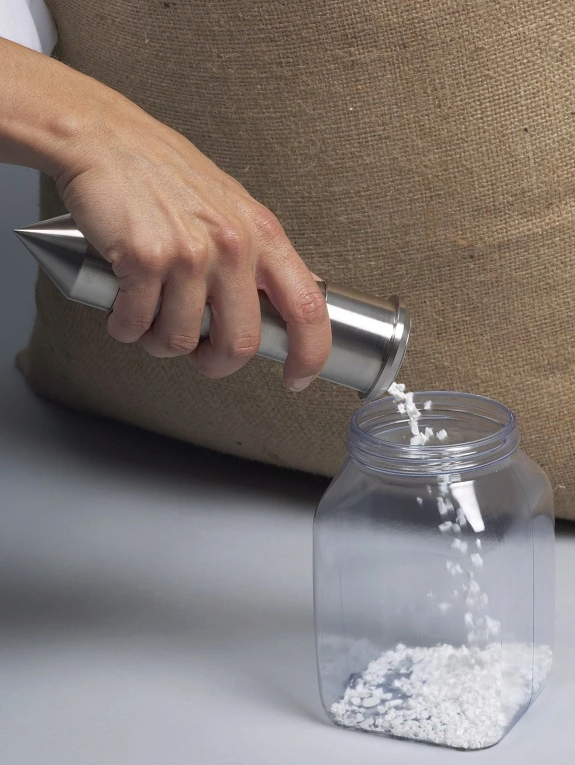

3. Pull out the SiloPicker and empty it.
