Machine description:

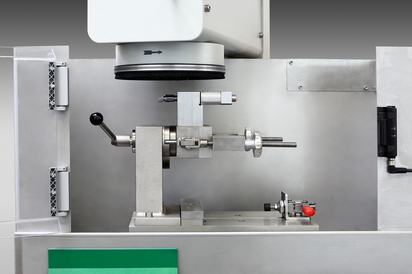

Surface grinding machine with height adjustable grinding table. The grinding table can be adjusted in height by means of a hand wheel by a lifting element.
The grinding table is corrosion-resistant due to an electroless nickle plating.
The machine drive and the cup wheel are placed in the swivel arm. The exact guidance and smooth operation of the swivel arm are reached by a special bearing.The supply of cooling water is effected centrally through the hollow shaft of the grinding spindle. Thus, the total water quantity is used for cooling the segments. the grinding wheel cover with brush wiper avoids strong fogging of the cooling water.
The entire working chamber is surrounded by a splash guard. A plexiglass inspection window (500x745 mm) which can be removed in the front facilitates the placing of the specimens.
Art.no. P0307
