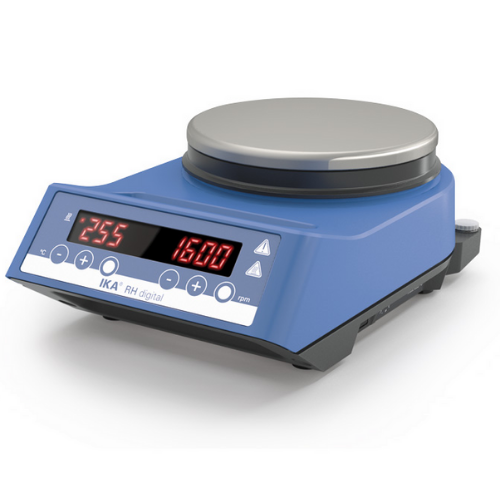

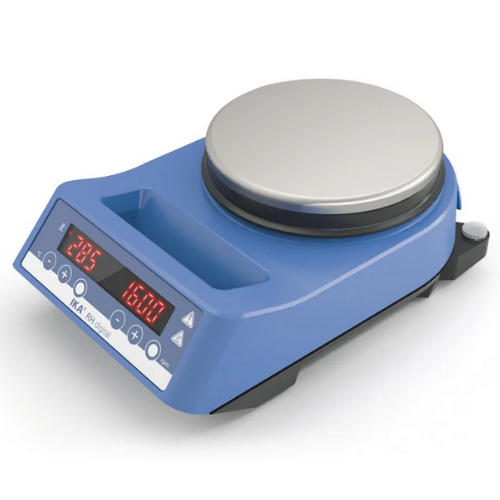

Magnetic stirrer RH digital
Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. A high heat output of 600 watts and stainless-steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.
- Digital display of temperature and speed
- Soft-start of stirring motor
- Strong magnetic field and wide speed range for volumes up to 15 liters
- Error code display
- Easy operation with touch keypad
Technical data:
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 15 l |
Motor rating output | 2 W |
Direction of rotation | left |
Speed display set-value | LED |
Speed control | Button |
Speed range | 100 – 2000 rpm |
Setting accuracy speed | 50 rpm |
Stirring bar length | 20 – 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 28 +K |
Heat output | 600 W |
Temperature display set-value | LED |
Temperature unit | °C |
Heating temperature range | 50 – 320 °C |
Heat control | Button |
Temperature setting range | 50 – 320 °C |
Heating rate heating plate | 6 K/min |
Connection for ext. temperature sensor | ETS-D5 |
Adjustable safety circuit | 100 – 360 °C |
Set-up plate material | stainless steel 1.4301 |
Set-up plate dimensions | Ø 135 mm |
Dimensions (W x H x D) | 160 x 100 x 250 mm |
Weight | 3.845 kg |
Permissible ambient temperature | 5 – 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 230 V |
Frequency | 50/60 Hz |
Power input | 620 W |
Scope of delivery
- RH digital
- IKAFLON® 20 Magnetic stirring bar
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
- H 103 Cover for RH digital
- H 102.1 Protection handle
- Screwdriver (use for safety circuit)
