H315.2K.300/600H Overhead Track Scale for Carcass Weighing – Dual Range, Stainless Steel Option

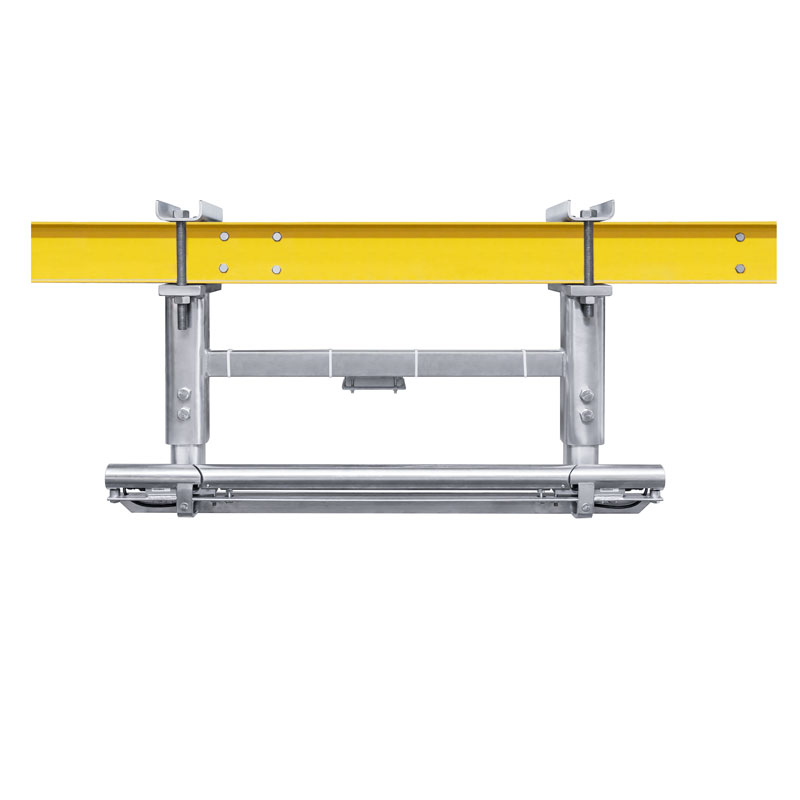

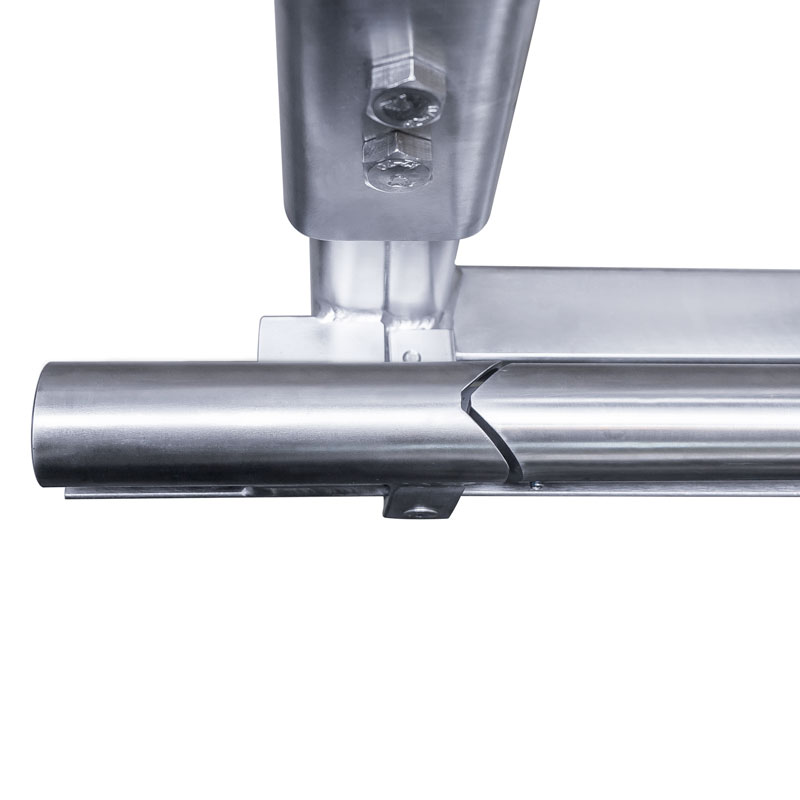

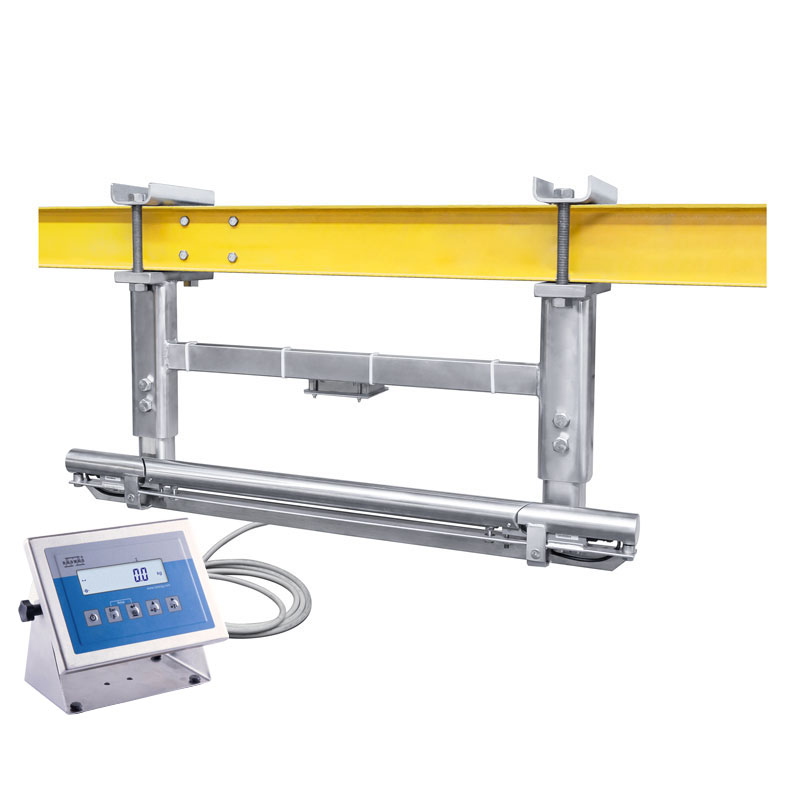

Overhead track scale H315 series is designed for weighing half carcass and porkhalf which are transported on scale’s track. The weighing process starts when a roller with measured load enters a measuring section of the track. The load cells are installed lengthwise to the weighing track which is fixed with spherical mandrels. Such design eliminates tensions in the construction. Scales can cooperate with carcass grading equipment. The H315 series is manufactured either in galvanized or in stainless steel version, as dual range weighing instruments. They are equipped with a stainless steel backlit LCD indicator PUE H315 installed on a cable.
| Metrological parameters |
|---|
| Maximum capacity [Max] | 300 / 600 kg |
| Minimum load | 2 kg |
| Readability [d] | 0.1 / 0.2 kg |
| Tare range | -600 kg |
| OIML Class | III |
| Physical parameters |
|---|
| Display | LCD (backlit) |
| Detection line span | L= 800 mm (min. 200 mm) |
| Construction | Protection class IP 67 construction, IP 68 (1h max)/69 indicator |
| Construction | Stainless steel AISI304 |
| Communication interface |
|---|
| Communication interface | RS232, USB |
| Optional interfaces | RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA |
| Electrical parameters |
|---|
| Power supply | 100 – 240 V AC 50/60 Hz |
| Optional power supply | internal rechargeable battery |
| Operation time on batteries | max 7h |
| Environmental conditions |
|---|
| Operating temperature | -10 — +40 °C |
| Relative humidity | 10% — 85% RH no condensation |
