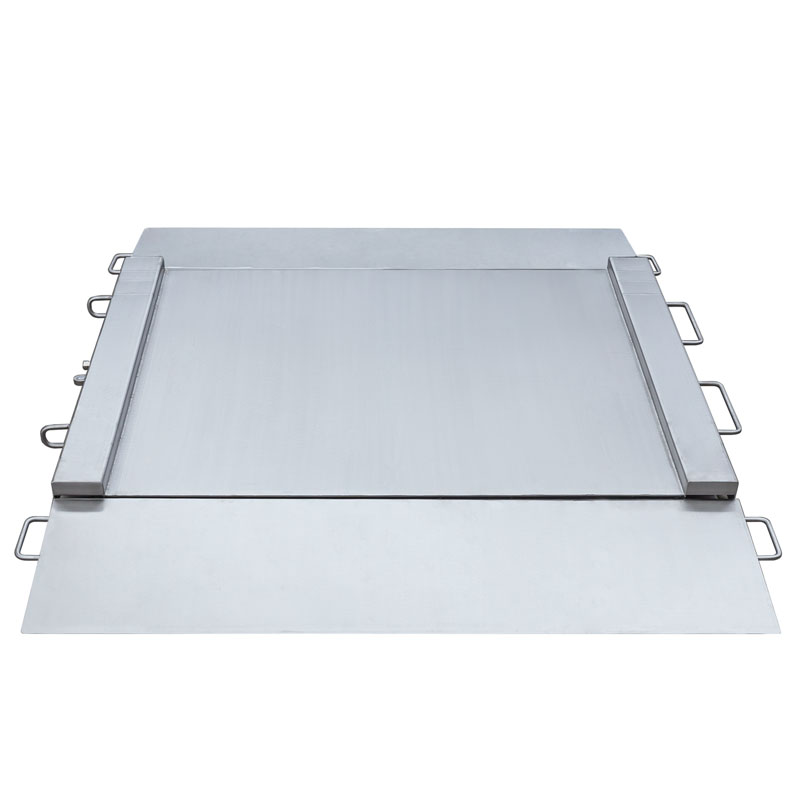

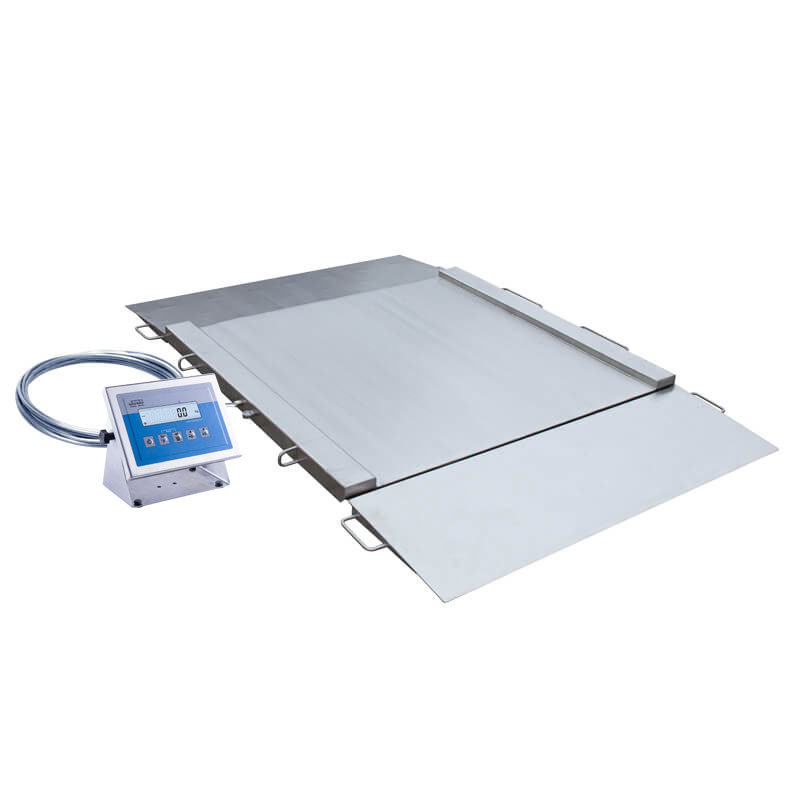

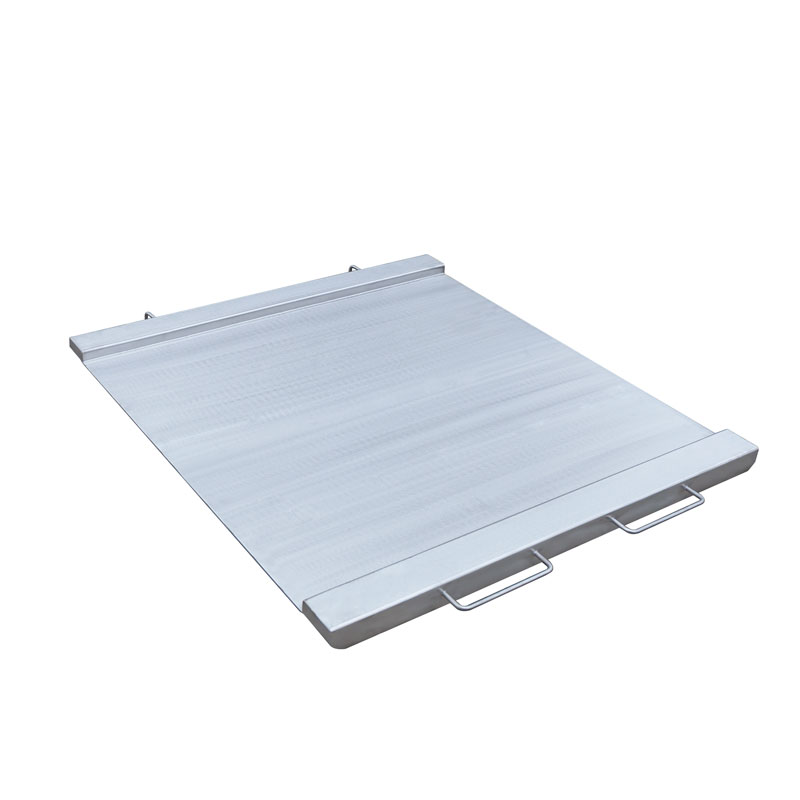

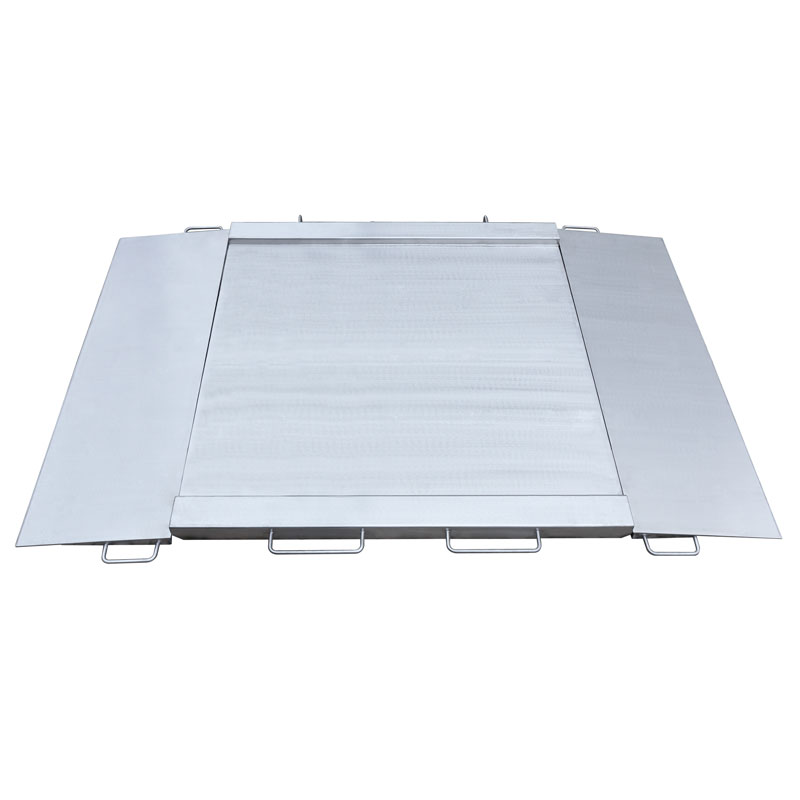

H315.4N.300/600.H2 Stainless Steel Ramp Scale with Dual Range for Meat, Fish, Pharmaceutical, Cosmetic, and Chemical Industries
Ramp scales with stainless steel load cells is widely applied in meat, fish, pharmaceutical, cosmetic and chemical industry. The H315/4N series is manufactured in complete stainless steel technology with stainless steel indicator PUE H315 series installed on a long cable. Ramp scales is manufactured from OH18N9 stainless steel with IP 68. On special order, it is possible to manufacture ramp scales in upgraded anti-corrosion stainless steel version. Scales is available in dual range version on surcharge.
| Metrological parameters |
|---|
| Maximum capacity [Max] | 300 / 600 kg |
| Minimum load | 2 kg |
| Readability [d] | 100 / 200 g |
| Tare range | -600 kg |
| OIML Class | III |
| Physical parameters |
|---|
| Display | LCD (backlit) |
| Weighing pan dimensions | 1100×1200 mm |
| Packaging dimensions | 1500×1300×600 mm |
| Scale mass with indicator | 150 kg |
| Cable length | 3 m |
| Construction | Protection class IP 68 construction, IP 68 (1h max)/69 indicator |
| Communication interface |
|---|
| Communication interface | RS232, USB |
| Optional interfaces | RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA |
| Electrical parameters |
|---|
| Power supply | 100 – 240 V AC 50/60 Hz |
| Optional power supply | internal rechargeable battery |
| Operation time on batteries | max 7h |
| Environmental conditions |
|---|
| Operating temperature | -10 — +40 °C |
| Relative humidity | 10% — 85% RH no condensation |
