HX7.4.600.H8/Z Multifunctional Stainless Steel Platform Scale, Pit Version – Industrial Weighing Solution

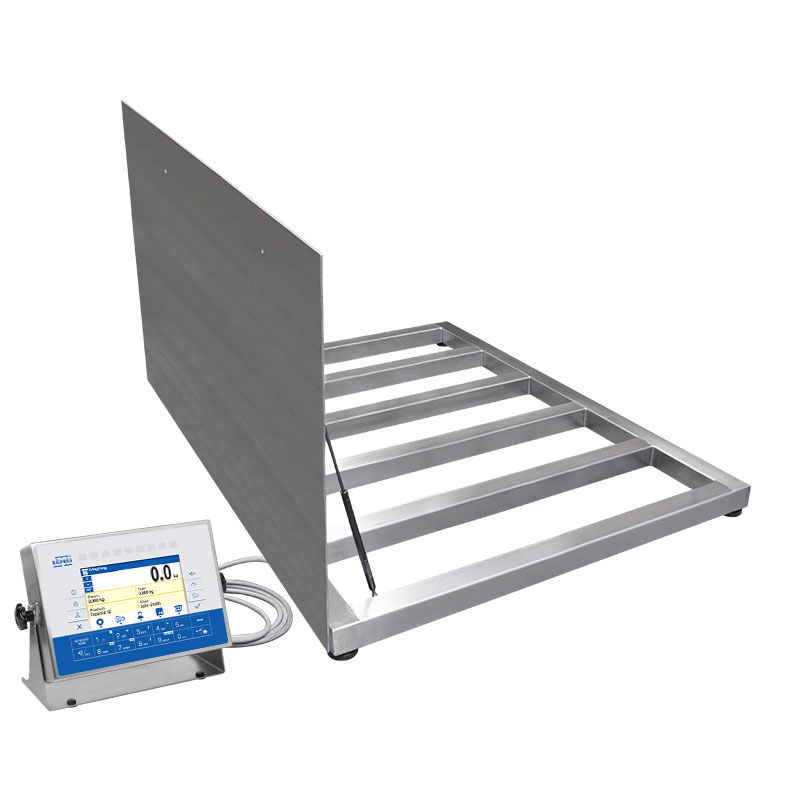

The HX7.4 H/Z scale is a device constructed on the basis of a PUE HX7 terminal and a ground-embedded 4-load-cell platform, both manufactured using the AISI 304 stainless steel. The device's high protection class, IP66 / IP68, makes it suitable for use in industry.
Comfort of operation is guaranteed thanks to a clear-cut menu, and a colour display featuring a 9-diode bar graph blinking red and green when signalling current net mass of a load in reference to the scale range or declared min and max thresholds.
Housing back is equipped with hermetic communication interfaces such as RS232, RS485, USB, Ethernet, at your disposal there are also digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. The terminal's system of information is based on databases: users, products, weighings, packaging, formulations, customers, ALIBI memory which guarantees stored data safety. The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
| Metrological parameters |
|---|
| Maximum capacity [Max] | 600 kg |
| Minimum load | 4 kg |
| Readability [d] | 200 g |
| Verification unit [e] | 200 g |
| Tare range | -600 kg |
| Max readability for non-verified scale | 50 g |
| OIML Class | III |
| Physical parameters |
|---|
| Display | 7” graphic colour |
| Weighing pan dimensions | 1200×1200 mm |
| Packaging dimensions | 1400×1400×550 mm |
| Net weight | 144.7 kg |
| Gross weight | 181.3 kg |
| Cable length | 3 m |
| Indicator | PUE HX7 |
| Number of buttons | 22 |
| Construction | Protection class IP 68 construction, IP 66/68 indicator |
| Keypad | membrane |
| Construction | Stainless steel AISI304 |
| Communication interface |
|---|
| Communication interface | RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU |
| Optional interfaces | USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V |
| Electrical parameters |
|---|
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption | max. 25 W |
| Optional power supply | 12-24V DC |
| Environmental conditions |
|---|
| Operating temperature | -10 — +40 °C |
| Storage temperature | -10 — +50 °C |
| Relative humidity | 10% — 80% RH no condensation |
| Features of use |
|---|
| Max number of platforms | 2 |
