HX7.4P.1500.H Multifunctional Stainless Steel Pallet Scale for Euro and Transport Pallets – Advanced Weighing Solutions

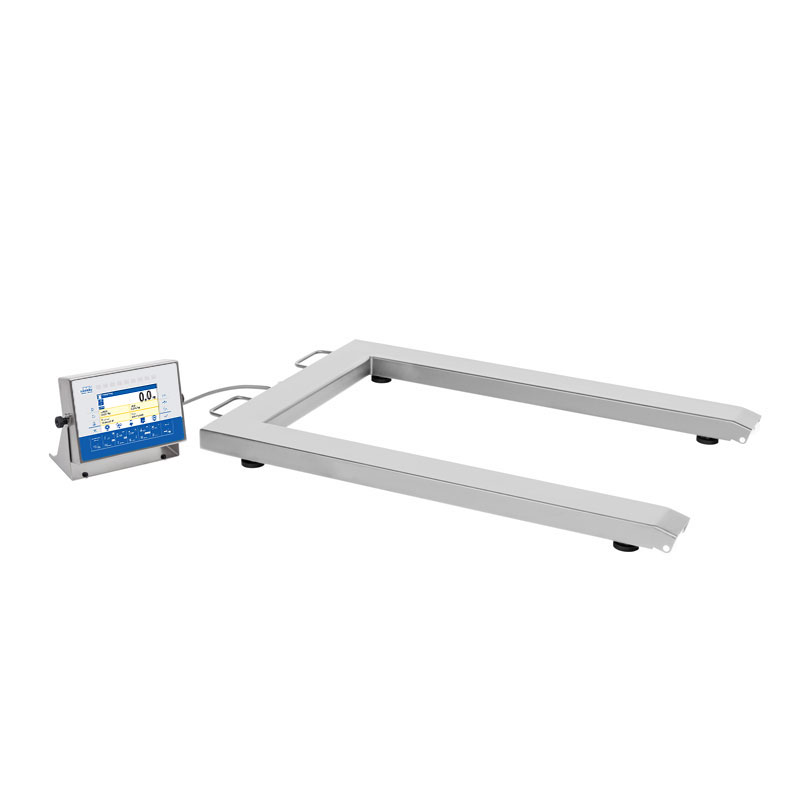

The HX7.4P H pallet scale is outfitted with a 4-load-cell mechanical design, made of AISI304 stainless steel, which has been invented for weighing pallets. The scale is mainly intended for Euro and transport pallets of respective size, i.e. 800 × 1200 mm.
The load can be put onto the pan using a forklift. The scale is controlled via a cutting-edge indicator, the PUE HX7 offering a 7"" graphic display and a diode bar graph which signals a current load mass related to the scale range or declared minimum and maximum thresholds.
At the back of the housing there are hermetic connectors of RS232, RS485, USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Indicator’s system of information is based on databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.
| Metrological parameters |
|---|
| Maximum capacity [Max] | 1500 kg |
| Minimum load | 10 kg |
| Readability [d] | 500 g |
| Verification unit [e] | 500 g |
| Tare range | -1500 kg |
| Max readability for non-verified scale | 500 g |
| OIML Class | III |
| Physical parameters |
|---|
| Display | 7” graphic colour |
| Weighing pan dimensions | 860×1200 mm |
| Packaging dimensions | 1400×900×430 mm |
| Net weight | 46.7 kg |
| Gross weight | 81.3 kg |
| Cable length | 3 m |
| Indicator | PUE HX7 |
| Number of buttons | 22 |
| Construction | Protection class IP 68 construction, IP 66/68 indicator |
| Keypad | membrane |
| Construction | Stainless steel AISI304 |
| Communication interface |
|---|
| Communication interface | RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU |
| Optional interfaces | USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V |
| Electrical parameters |
|---|
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption | max. 25 W |
| Optional power supply | 12-24V DC |
| Environmental conditions |
|---|
| Operating temperature | -10 — +40 °C |
| Storage temperature | -10 — +50 °C |
| Relative humidity | 10% — 80% RH no condensation |
| Features of use |
|---|
| Max number of platforms | 2 |
