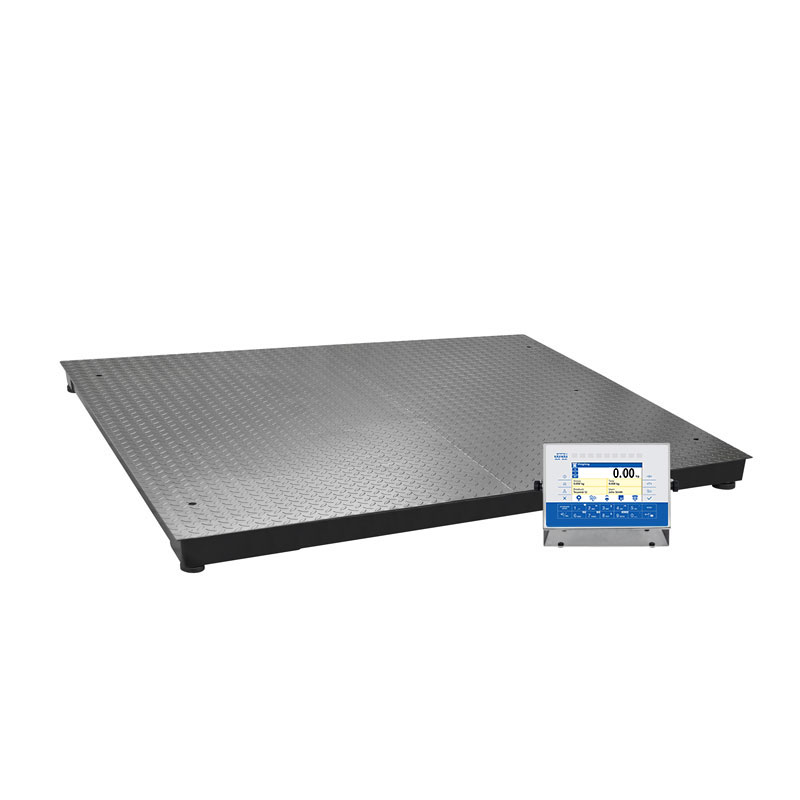

HX7.4.300.C8 Multifunctional Platform Scale with Stainless Steel Terminal and 4-Load-Cell Platform
The HX7.4 C scale is a solution based on a stainless steel PUE HX7 terminal (AISI 304) and a powder coated 4-load-cell platform.
The terminal
The terminal is characteristic for a 7” colour graphic display. Its novelty is a red-green 9-diode bar graph presenting the current net mass in reference to the scale range or preset min and max thresholds. At the back of the housing there are hermetic connectors of RS232, RS485, USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control superior IT systems. With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
Databases Terminal’s system of information is based on databases: users, products, weighings, packaging, formulations, customers, ALIBI memory which guarantees stored data safety. The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products: Stainless Steel in RADWAG products.
Standard and special applications Check the price in our store radwaguk.com Buying from the producer is all about the pros ✓ Update as standard You always get the latest version of the device and software. We are constantly improving our products. ✓ This is priceless Technical support from the product developers. Who better to know the answers to your questions? ✓ Smaller carbon footprint A solidly packaged shipment travels only one way – the one to you. ✓ Long life for your balance In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory. ✓ The important thing You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.
| Metrological parameters |
| Maximum capacity [Max] |
300 kg |
| Minimum load |
2 kg |
| Readability [d] |
100 g |
| Verification unit [e] |
100 g |
| Tare range |
-300 kg |
| Max readability for non-verified scale |
20 g |
| OIML Class |
III |
| Physical parameters |
| Display |
7” graphic colour |
| Weighing pan dimensions |
1200×1200 mm |
| Packaging dimensions |
1300×1300×500 mm |
| Net weight |
114.7 kg |
| Gross weight |
149.3 kg |
| Cable length |
3 m |
| Indicator |
PUE HX7 |
| Number of buttons |
22 |
| Construction |
| Protection class |
IP 65 construction, IP 66/68 indicator |
| Keypad |
membrane |
| Construction |
mild steel St3S |
| Communication interface |
| Communication interface |
RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU |
| Optional interfaces |
USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V |
| Electrical parameters |
| Power supply |
100 – 240 V AC 50/60 Hz |
| Power consumption |
max. 25 W |
| Optional power supply |
12-24V DC |
| Environmental conditions |
| Operating temperature |
-10 — +40 °C |
| Storage temperature |
-10 — +50 °C |
| Relative humidity |
10% — 80% RH no condensation |
| Features of use |
| Max number of platforms |
2 |
