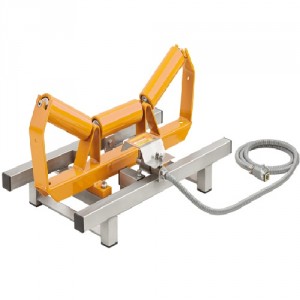

Flow metering on the belt conveyor UNIBAND®
The UNIBAND® is a stainless steel conveyor belt scale for the weighing of continuous material flows. With its simple integration into a conveyor system the throughput and usage measurements may be commercially effected for the desired bulk materials. Because of the low construction height of UNIBAND® it can be integrated into any conveyor system for mass measurement. The UNIBAND® optimises processes with accurate measurements in many different kinds of industrial sectors: stone, earth, food,
chemicals and much more.
Operation
The weight of the material upon the conveyor belt acts on the measuring roll station, to which the weighing framework is connected. An overload-protected loadcell transforms the weight signal into a voltage signal. Using an optional speed measurement wheel, which continuously runs on the lower belt, the current belt speed is registered. A downstream transmitter processes the weight signal in relation to the belt speed. The conveyor’s performance is displayed in “t/h” and the selected meter reading, for example daily amount in “t” (tonnes).
„REMBE® belt scales guarantee us reliable and accurate online control at all times. Precise process controls and inventory management allow us to save our customers a great deal of time and money. In addition, REMBE® provides excellent service.“
Dr. Ing. Benjamin Eule
(Global Technical Manager at Stadler Anlagenbau)
Technical data
Material (standard version) | Weighing frame
- stainless steel 1.4301
Accuracy
- ± 0,5 up to 2 %
Working temperature
- -40 °C up to +75 °C, optional high-temperature version up to 200 °C
Output signal
- 2 mV / V
Supply voltage
- 5 up to 12 VDC
Your benefits
- Simple integration into existing belt constructions due to low construction height. Dimensions can be adapted individually.
- For implementation in rough process environments completely made of stainless steel.
- Readjustments can be performed by customer.
- Maintenance-free – no wear as no pivot bearings are included.
- Extremely robust and corrosion-resistant; with assembled, fully enclosed, laser welded loadcell.
- For implementation in potentially explosive areas.
