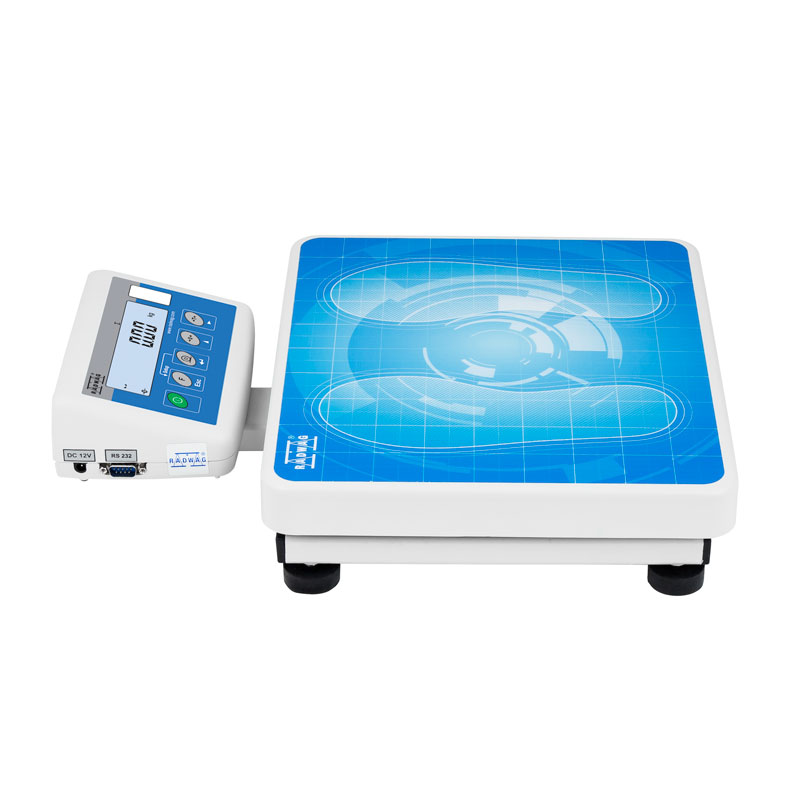

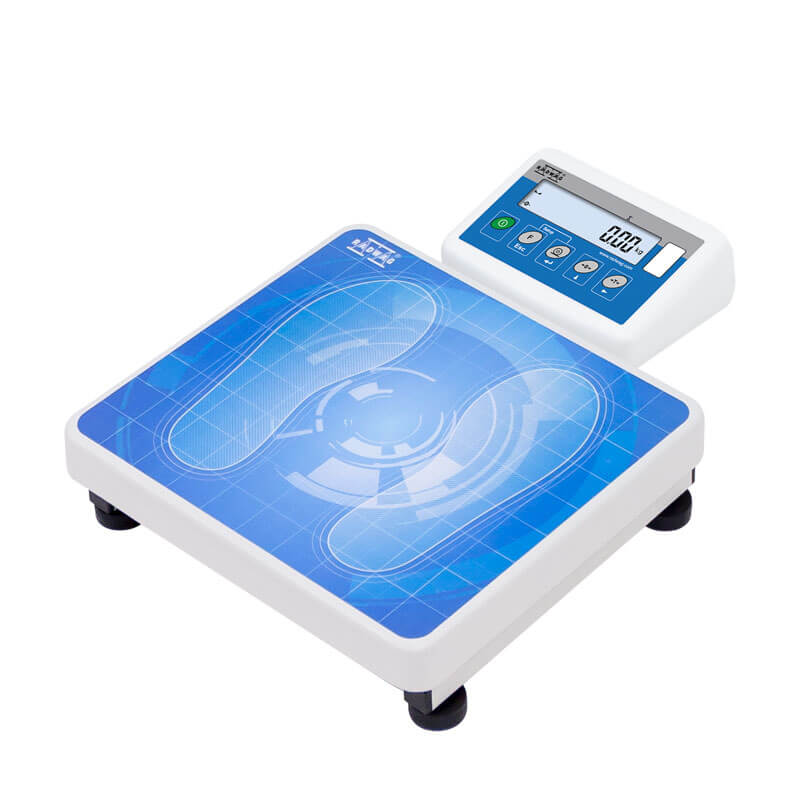

C315.100/200.OR-1 Personal Scale for Healthcare Facilities – Dual Range, Battery/Mains Powered, LCD Display
The scales is designed for weighing patients in health care facilities and in clinics. It is equipped with indicator PUE C315 series comprising a backlit LCD display and 5-button keyboard ensuring simple operation of scale basic functions.
Personal scales is supplied either by mains or by batteries. The model without height-meter has an indicator attached to the weighing platform. It is manufactured as a dual range instrument.
| Metrological parameters |
|---|
| Maximum capacity [Max] | 100 / 200 kg |
| Readability [d] | 50 / 100 g |
| Tare range | -200 kg |
| OIML Class | III |
| Physical parameters |
|---|
| Display | LCD (backlit) |
| Packaging dimensions | 500×420×160 mm |
| Net weight | 6.5 kg |
| Gross weight | 7.5 kg |
| Communication interface |
|---|
| Communication interface | RS232 |
| Optional interfaces | RS232 |
| Electrical parameters |
|---|
| Power supply | 100 – 240 V AC 50/60 Hz and battery |
| Power consumption | max. 5 W |
| Operation time on batteries | up to 8 h |
| Environmental conditions |
|---|
| Operating temperature | 0 — +40 °C |
| Relative humidity | 10% — 85% RH no condensation |
