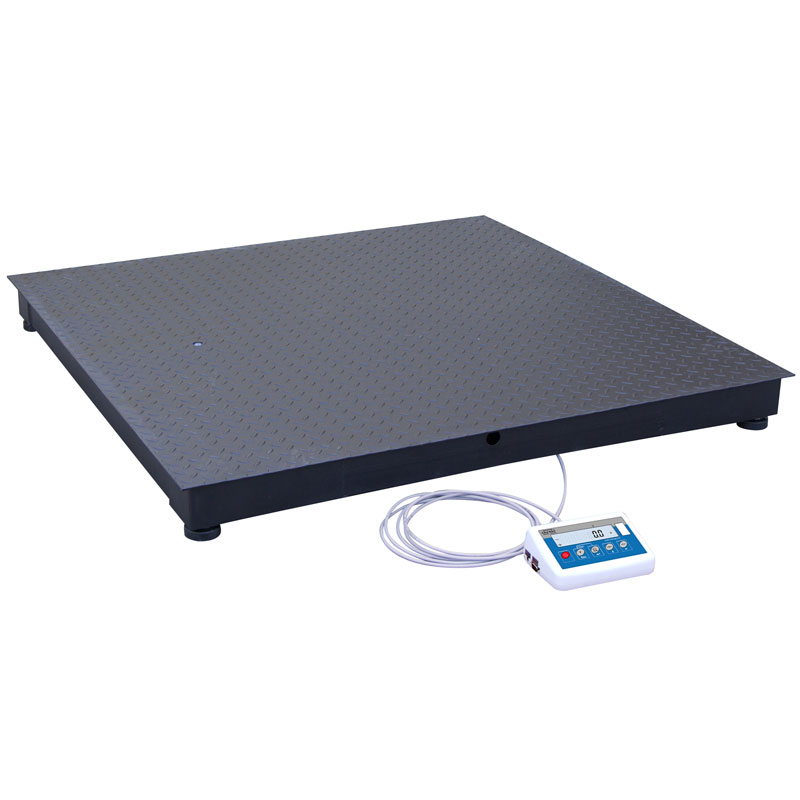

C315.4.1500.C7 Platform Scale with 4 Load Cells and Backlit LCD Display
Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on the weighing platform. The platform scales C315.4 series is made of mild steel powder coated construction of the weighing platform. The platform comprises 4 load cells connected to a terminal PUE C315 series featuring backlit LCD display and 5 function buttons. The weighing platform and the terminal are connected through a long cable enabling hanging the terminal on a wall. The C315.4 series is available in pit version for easy placing heavy loads on the weighing platform without application of ramps. Scales is available in dual range version on surcharge.
| Metrological parameters |
|---|
| Maximum capacity [Max] | 1500 kg |
| Minimum load | 10 kg |
| Readability [d] | 0.5 kg |
| Tare range | -1500 kg |
| Max readability for non-verified scale | 100 g |
| OIML Class | III |
| Physical parameters |
|---|
| Display | LCD (backlit) |
| Weighing pan dimensions | 1000×1000 mm |
| Weighing platform height | 120 ±10 mm |
| Packaging dimensions | 1100×1000×500 mm |
| Scale mass with indicator | 80 kg |
| Cable length | 3 m |
| Construction |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
| Communication interface |
|---|
| Communication interface | RS232 |
| Optional interfaces | RS232 |
| Electrical parameters |
|---|
| Power supply | 100 – 240 V AC 50/60 Hz and battery |
| Power consumption | max. 5 W |
| Operation time on batteries | max 8h |
| Environmental conditions |
|---|
| Operating temperature | -10 — +40 °C |
| Relative humidity | 10% — 85% RH no condensation |
