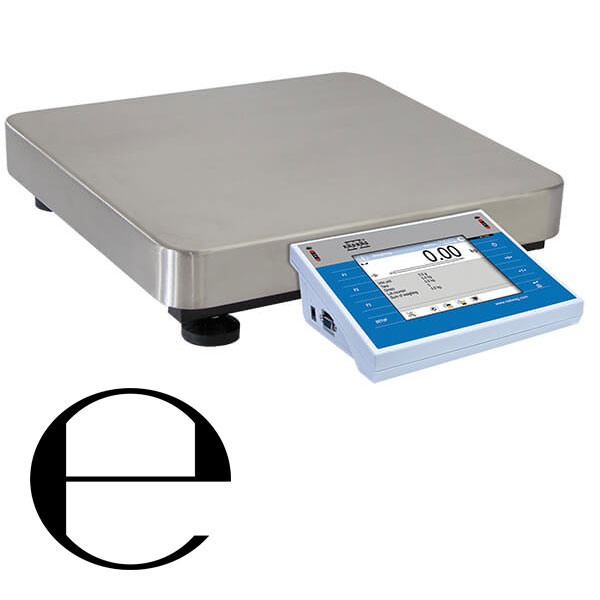

WPY 6/15.F1.R.PGC Scale – Advanced Packaged Goods Control with Touch Screen Display

WPY 6/15.F1.R.PGC Scale – Advanced Packaged Goods Control with Touch Screen Display

Scale WPY for statistic control WPY/PGC is equipped with modules that put packed products control into practice. The module is supported by a database containing products and operators lists. A control started by the scale is automatically stopped after controlling a pre-defined quantity of packages (samples).

The number of packages is fixed by the scale program depending on the product batch size. Scales are equipped with a 5.7"" colorful, graphic touch screen display for previewing information concerning the currently performed control and its result. Control cycle runs according to the following scheme: operator choice, product choice, control start, acquiring weighing records, automatic control end after a certain number of packages, control report print. Each carried out control is ended with a final report containing all information that is necessary for the prepacked products control report. The report is automatically saved in the scale memory and at the same time, it can be printed by a printer connected to the scale.

Scale coupling with computer program enables: – Keeping weighing records from successive weighments in the database – Automatic printout of control processes from computer software level – Sending user-defined codes from scale to computer software; the codes match weighed product (product code, operator code, batch quantity, batch no., control Start/Stop) – Defining product codes and their descriptions (names) from the level of computer program, therefore user can assign an individual product name suitable for the company's branch. The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary. We recommend ordering a scale with proper verification (legalization).
