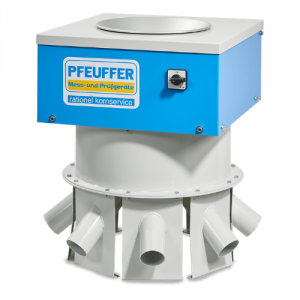

Sample divider – Sample dividing into 8 subsamples

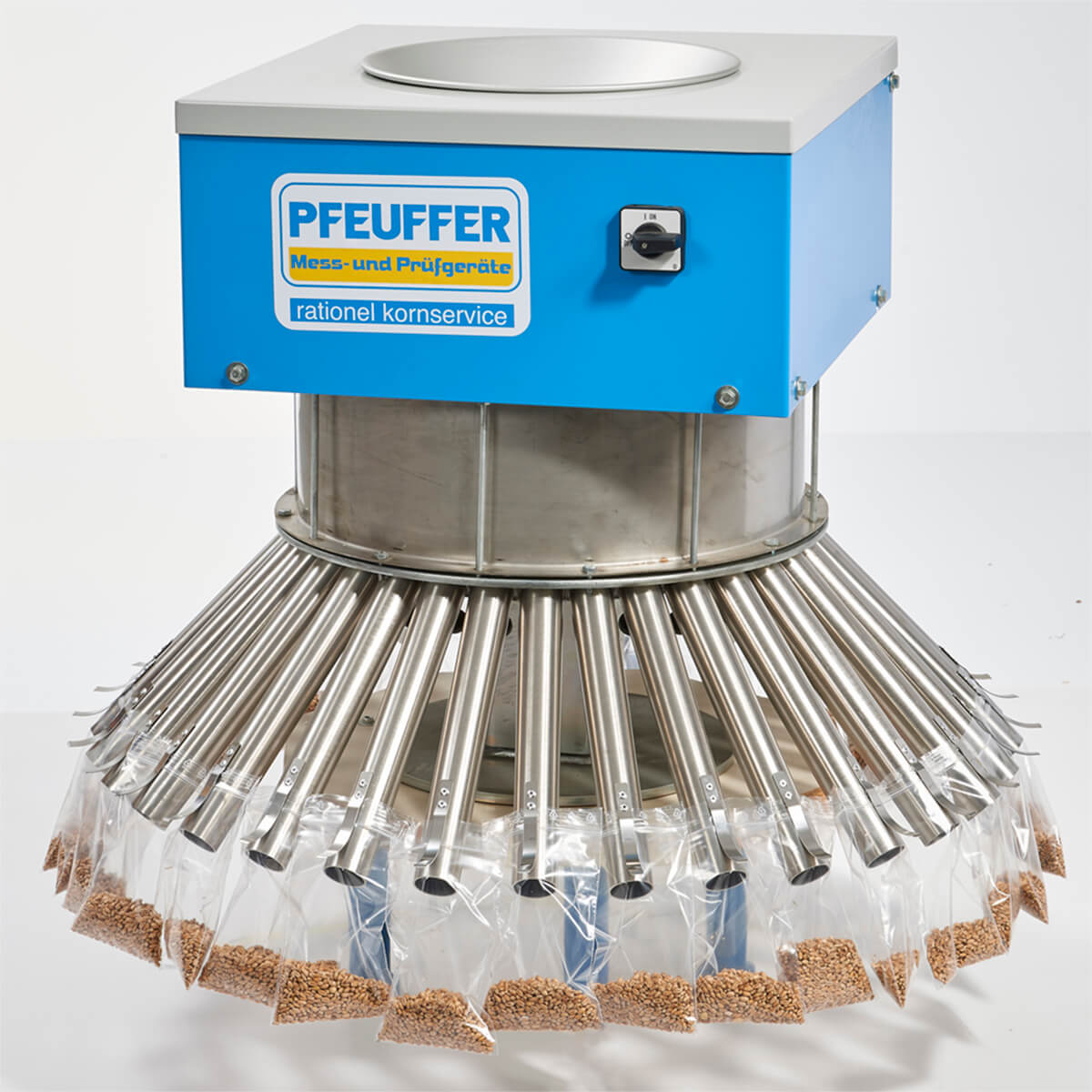

Sample divider – Sample dividing into 8 or 32 subsamples in a single operation
Divider for round robin tests and test series
- 8 or 32 subsamples in a single work operation
- Fixed dividing ratio
- Suitable for large sample containers and quantities
- Three funnel sizes available
Usage area
The model 8 / model 32 sample divider is used to produce homogeneous round robin test samples. It is also used to prepare internal control samples, which are needed for regular comparative measurements.
Function

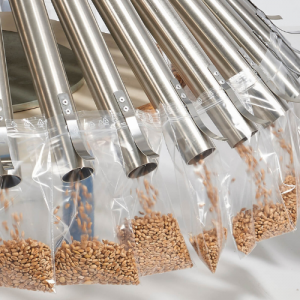

Switch on sample divider and put the sample into the feed funnel. The surrounding distributor pipe distributes the sample among the 8 or 32 sample outlets. The sample is fully distributed, which means that there is no surplus quantity. Because of the large number of openings that are coated when the sample is passing through, the sample divider achieves extremely good statistical distribution of the different sample parts.
| Product | Number of samples | Voltage / output | Dimensions | Weight | Item number |
|---|---|---|---|---|---|
| Model 8 | 8 | 230 V, 50 Hz / 60 VA | 540x540x695 mm | 38.5 kg | 1745 0055 |
| Model 32 | 32 | 230 V, 50 Hz / 60 VA | 530x480x575 mm | 51 kg | 1745 0056 |
| Accessories | Item number |
|---|---|
| Extension pipe (for model 32 only) | 2330 0390 |
| Extension funnel for capacity of 8 kg | 3331 0510 |
| Funnel diam. 30 mm (9 kg/min) | 3331 0520 |
| Different funnel inserts | By request |
