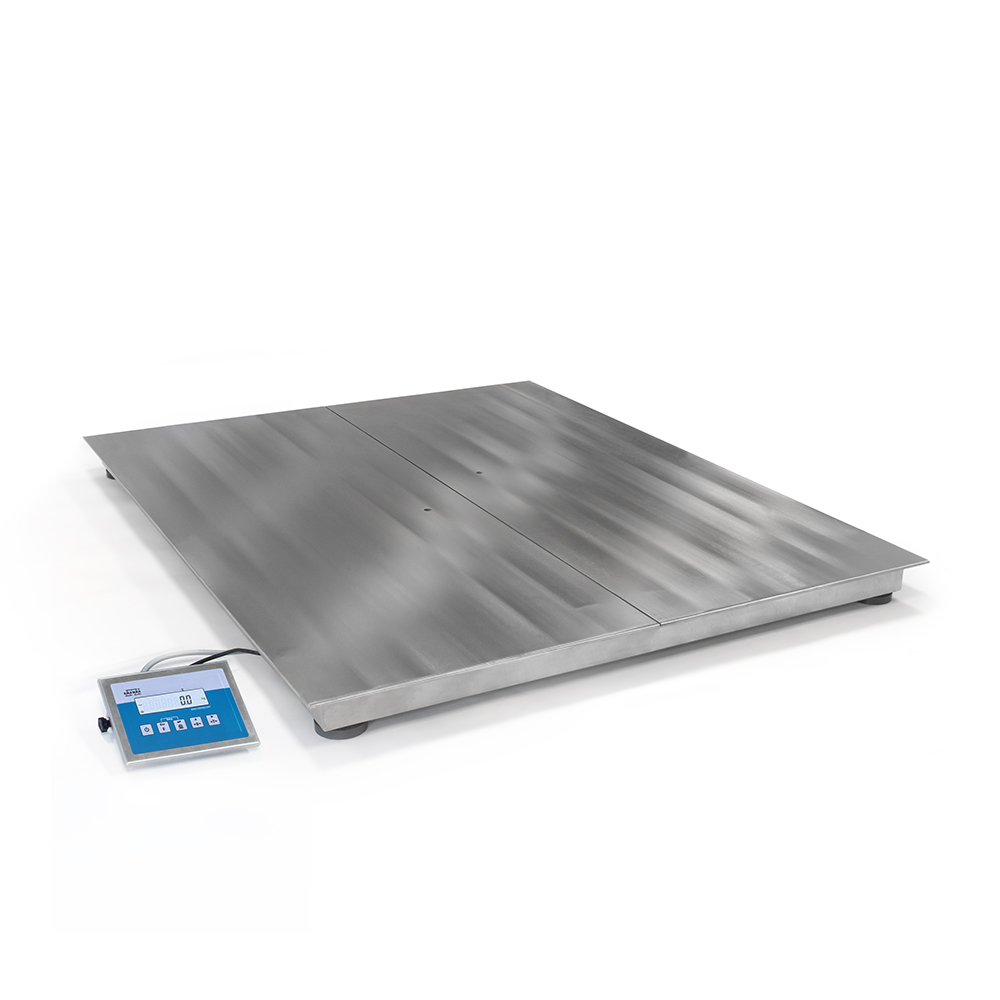

H315.4.600.H10/Z Stainless Steel Pit Platform Scale with 4 Load Cells and Backlit LCD Display

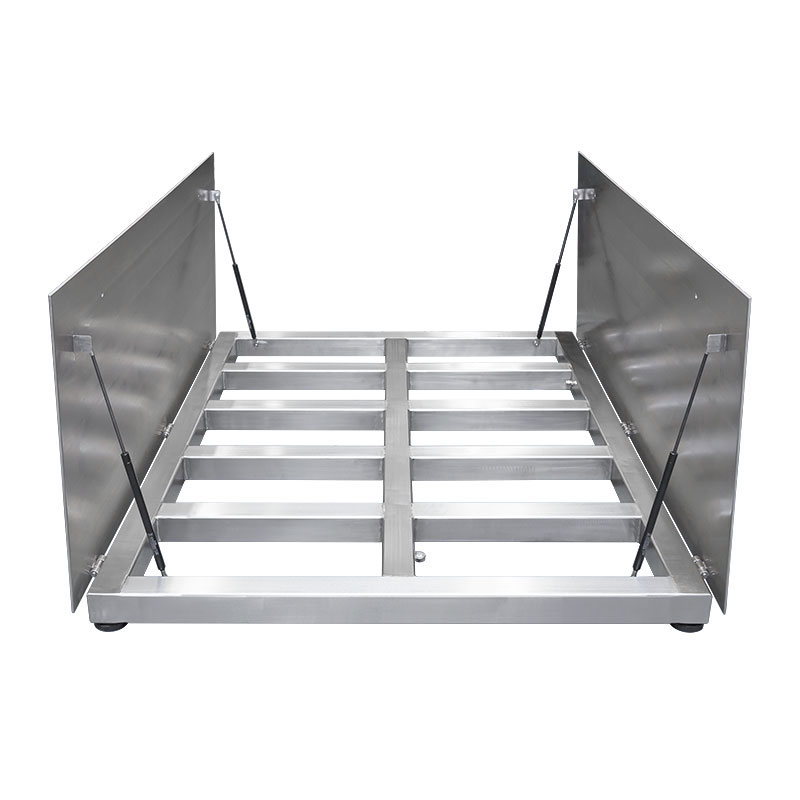

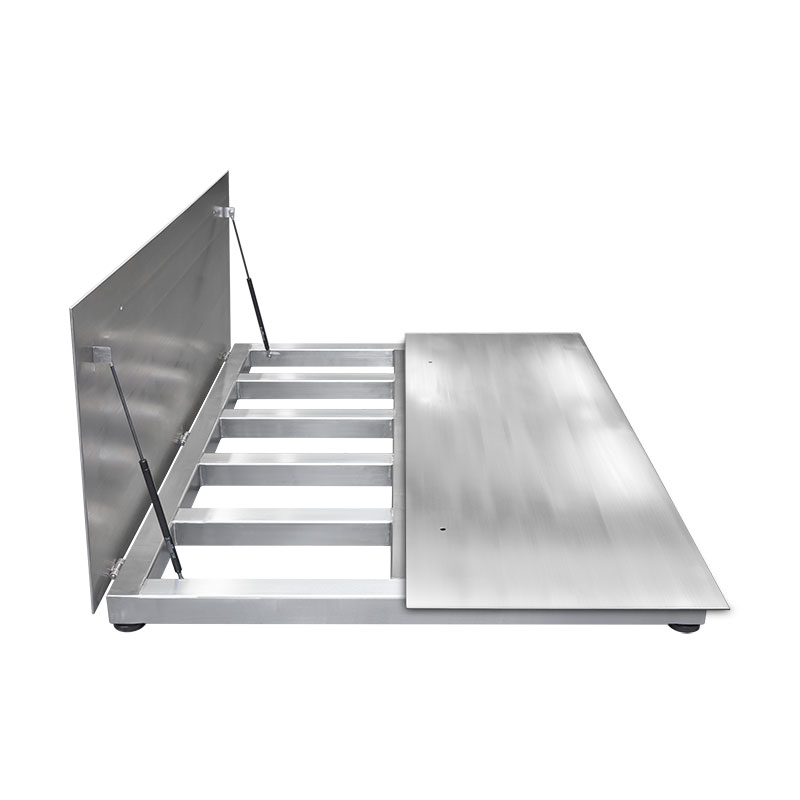

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on weighing platform. H315.4 H/Z The platform scales H315.4 H/Z series is fully made of stainless steel profiles with stainless steel weighing platform. The scale features 4 load cells, and it is prepared for mounting as a pit version. The device comes standard with opening weighing platform enabling easy cleaning the area beneath the platform. The H315.4 H/Z series features a stainless steel terminal PUE H315 series with backlit LCD display and function buttons. The terminal is installed on a long cable for easy mounting it on a wall. The scale is powered from mains, RS 232 interface comes standard. Scales is available in dual range version on surcharge. The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale. Stainless Steel in RADWAG products Learn about the use and maintenance of stainless steel products: Stainless Steel in RADWAG products. Standard and special applications Check the price in our store radwaguk.com Buying from the producer is all about the pros ✓ Update as standard You always get the latest version of the device and software. We are constantly improving our products. ✓ This is priceless Technical support from the product developers. Who better to know the answers to your questions? ✓ Smaller carbon footprint A solidly packaged shipment travels only one way – the one to you. ✓ Long life for your balance In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory. ✓ The important thing You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance. See in store (UK)
| Metrological parameters |
|---|
| Maximum capacity [Max] | 600 kg |
| Minimum load | 4 kg |
| Readability [d] | 200 g |
| Tare range | -600 kg |
| Max readability for non-verified scale | 50 g |
| OIML Class | III |
| Physical parameters |
|---|
| Display | LCD (backlit) |
| Weighing pan dimensions | 1500×2000 mm |
| Weighing platform height | 166 mm |
| Scale mass with indicator and frame | 325 kg |
| Cable length | 3 m |
| Construction | Protection class IP 68 construction, IP 68 (1h max)/69 indicator |
| Communication interface |
|---|
| Communication interface | RS232, USB |
| Optional interfaces | RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA |
| Electrical parameters |
|---|
| Power supply | 100 – 240 V AC 50/60 Hz |
| Optional power supply | internal rechargeable battery |
| Operation time on batteries | max 7h |
| Environmental conditions |
|---|
| Operating temperature | -10 — +40 °C |
| Relative humidity | 10% — 85% RH no condensation |
