Automatic notch cutting machine Used to notch plastic specimens according to standards ASTM D256, ASTM D6110, EN ISO 179, EN ISO 180 and EN ISO 8256 (Charpy and Izod tests)
Plastic specimen preparation or machining
Standard thermoplastic and thermoset molding specimen are produced by injection or compression molding. Material characteristics are significantly influenced by production parameters such as pressure, temperature, and flow speed. Specimens are taken from slabs and components through mechanical processing such as per ISO 2818.

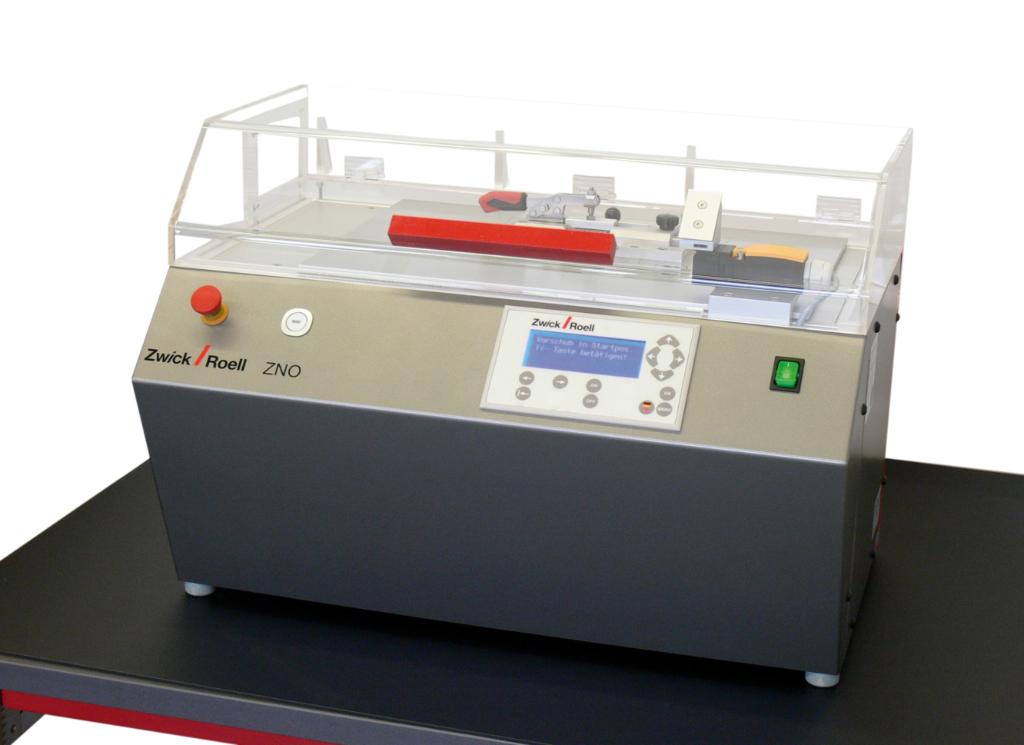

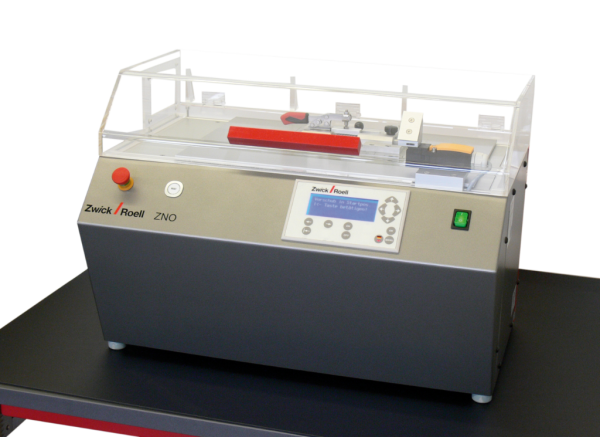

Automatic notch cutting machine
Used to notch plastic specimens according to standards ASTM D256, ASTM D6110, EN ISO 179, EN ISO 180 and EN ISO 8256 (Charpy and Izod tests)
Key features:
- A v-shaped notch is machined on one side of the specimens using a milling head
- Several test specimens are clamped into one stack and notched at the same time
- We offer an optional measuring device to test the notch depth
- Different cutters, which can be easily exchanged, are available for different materials and notch radii.
Benefits:
- Stepless adjustment of cutting speed and feed rate
- Manual notch-depth setting via fine-pitch screw-adjuster
- Specimens are easily and securely fastened in the fast acting gripping device
