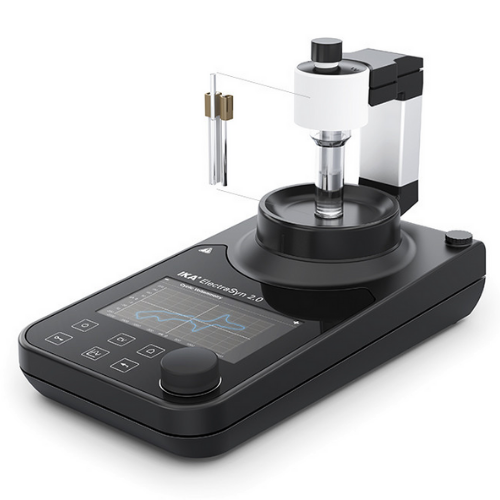

ElectraSyn 2.0 pro Package
ElectraSyn gives a quick CV analysis. A typical use of ElectraSyn CV is that synthetic chemists use the device to quickly retrieve redox peak information and run a constant voltage reaction based on the data. For how well the CV function serves your application, please contact us.
The ElectraSyn 2.0 pro package includes:
- ElectraSyn 2.0 package
- CV Kit: CV glassy carbon electrode, CV reference electrode, Platinum plated electrode
Technical Data
| Nominal voltage (input) | 48 VDC |
| Current max. (input) | 1500 mA |
| Voltage output (electrode) | 30/10 V |
| Current output (electrode) | 100 mA |
| Motor rating output | 9 W |
| Speed range | 50 – 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring quantity max. per stirring position (H2O) | 0.1 l |
| Stirring bar length | 8 – 16 mm |
| Speed control | Turning knob |
| Display | TFT |
| Output current resolution | 0.1 mA |
| Output voltage resolution | 0.01 V |
| Current measuring resolution | 0.1 mA |
| Voltage measuring resolution | 0.1 V |
| Current measuring accuracy | ±0.1 mA |
| Voltage measuring accuracy | ±0.01 V |
| Dimensions (W x H x D) | 130 x 150 x 250 mm |
| Weight | 3.55 kg |
| Permissible ambient temperature | 5 – 50 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| USB interface | yes |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 39.84 W |
| Power input standby | 5 W |
| DC Voltage | 48 V= |
| Current consumption | 750 mA |
Accessories are also available, including a carousel which enables six reactions in parallel, electrodes of various materials and sizes, and vials from 1 to 20 mL.
The IKA ElectraSyn App (available for both iPhone and Android) enables reaction and CV experiment monitoring, data transmitting, and various other functions. ElectraSyn is a device that improves over time through regular software updates.
