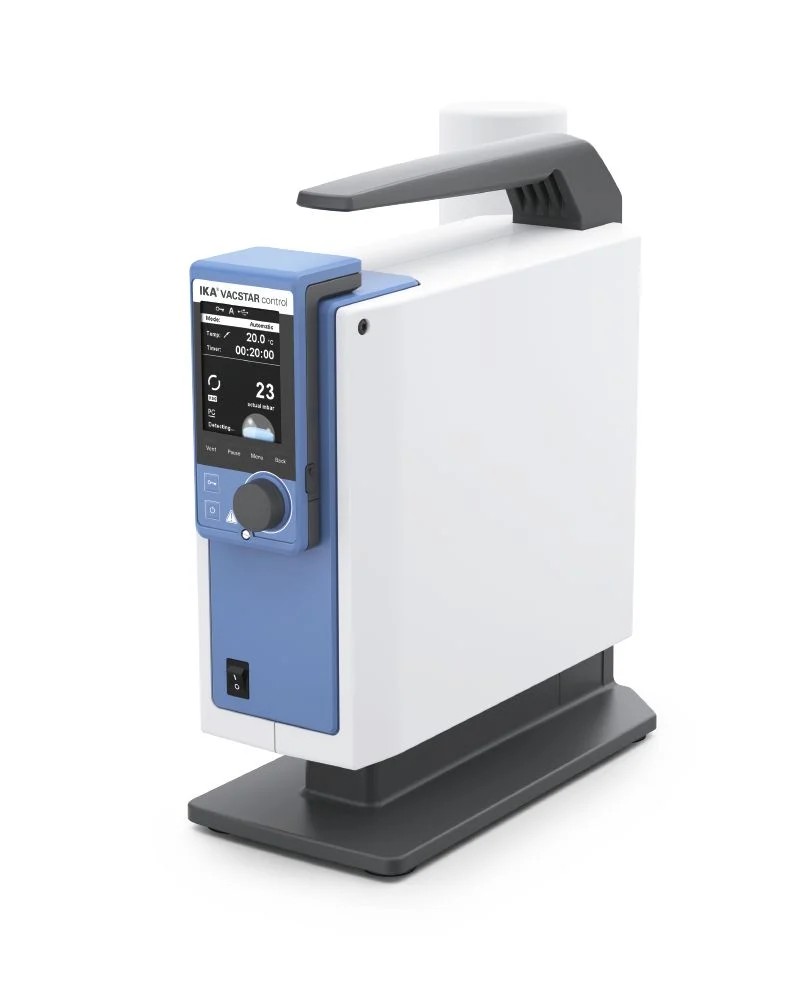

VACSTAR control

Separation, filtration, removal: The VACSTAR dry 4-chamber membrane vacuum pump is powerful, resistant to chemicals and low-maintenance. VACSTAR control is the ideal system with its integrated vacuum controller and removable display. The controller offers a suitable mode for the desired process: from automatic to manual operation, right through to pumping or an evacuation and cleaning function.

High-performance suction
VACSTAR has an excellent suction performance, with its 22 l/min at a minimum of 2 mbar.

Integrated vacuum controller with removable controller (WiCo)
Depending on the application, you can easily select your operating mode either by using the intuitive operator menu or by remote control.

For additional safety for users and environment, we recommend using the VSE 1 vacuum safety emission condenser, which prevents solvents from being released into the room air. The VSE 1 is available as accessory.

Scope of delivery

• WiCo VACSTAR control
• Vacuum hose (1 m)
• WH11
• OS 1.0 WiCo power supply unit
• USB Cable – USB A to Micro-B, 2 m
• USB A-B Cable
• Screw driver

• Technical Data

  Pump rate max. (50/60Hz)	1.32 m³/h
  Pump rate max. (50/60Hz)	22 l/min
  Final pressure without gas ballast	2 mbar
  Suction levels	4
  Cylinder	4
  Connection diameter suction side	8 mm
  Connection diameter pressure side	8 mm
  Input pressure	2 – 1030 mbar
  Boiling point detection	yes
  Solvent library	yes
  Analog speed vacuum control	yes
  Speed adjustment	Turning knob
  Speed range	285 – 1200 rpm
  Display	TFT
  Pressure unit / scale	mbar, hPa, mmHg, Torr
  Vacuum sensor	yes
  Vacuum sensor type	ceramic Al2O3
  Pressure max. for pressure sensor	1.2 bar
  Measurement range (absolute)	1 – 1030 mbar
  Control range	1 – 1030 mbar
  Resolution pressure	1 mbar
  Measurement uncertainty	1 mbar
  Venting valve	yes
  Condensate trap	yes
  Emission condenser	yes
  Timer	yes
  Noise at low. pressure	54 dB(A)
  Material in contact with medium	Al2O3, PTFE, FPM, PPS
  Housing material	alu-cast coating / thermoplastic polymer
  Mode automatic	yes
  Mode manual	yes
  Mode pump %	yes
  Mode program	yes
  Dimensions (W x H x D)	270 x 435 x 500 mm
  Weight	14 kg
  Permissible ambient temperature	5 – 40 °C
  Permissible relative humidity	80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
  Protection class according to DIN EN 60529	IP 20
  RS 232 interface	yes
  USB interface	yes
  Voltage	100 – 240 V
  Frequency	50/60 Hz
  Power input	140 W
  Power input standby	1.5 W
