SY 500

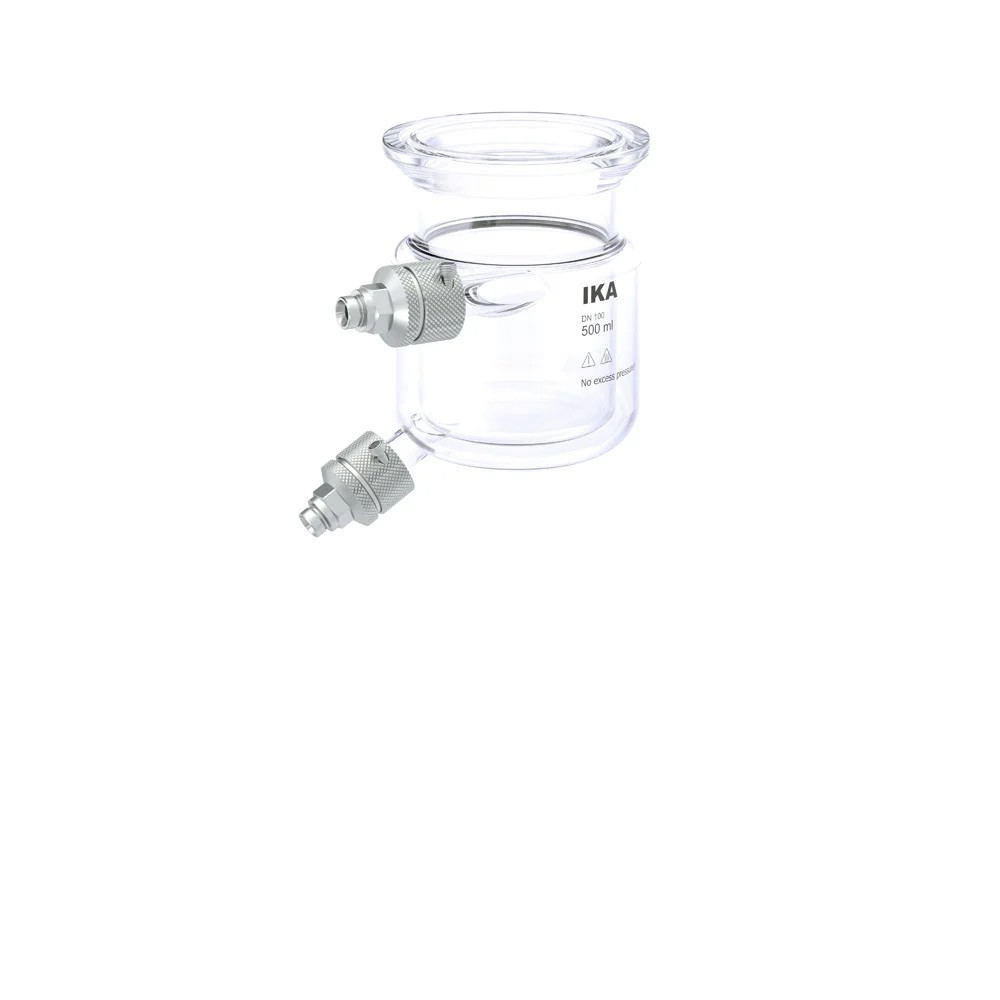

SY 500 Reactor vessel
Double-walled reactor vessel including accessories for the EasySyn reactor system.
Volume: 500 ml
Flange size: DN 100
Including stainless steel metal adapter M 16×1 (Male) to connect temperature hoses.
Scope of delivery:
Glasreactor incl. metal adapter
Technical Data
| Volume | 0.5 l |
| Fill level diameter ratio | 1.375 |
| Fill level at nominal volume | 72 mm |
| Vessel inner diameter | 99 mm |
| Vessel outer diameter | 130 mm |
| Height (room dimension) | 211 mm |
| Width (room dimension) | 197 mm |
| Depth (room dimension) | 141 mm |
| Flange type | acc. DIN 12214 with circular groove |
| Flange dimension | DN100 |
| Flange collar diameter | 108 mm |
| Bottom shape | Torispherical head |
| Tempering jacket filling capacity | 0.41 L |
| Tempering jacket inlet connection | DN 15 (tech-flange) |
| Tempering jacket inlet inner diameter | 15 mm |
| Vacuum application | yes |
| Tempering jacket outlet connection | DN 15 (tech-flange) |
| Tempering jacket oulet inner diameter | 15 mm |
| Thread closure system | M16x1 |
| Width across flats | WAF 22 |
| Material closure system | stainless steel 1.4404 |
| Reactor vessel material | borosilicate glass 3.3 DIN ISO 3585 |
| Working temperature | -50 – 230 °C |
| Useable volume | 30 – 610 ml |
| Useable volume with temperature probe min. | 260 ml |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 3 mbar |
| Material in contact with medium | borosilicate glass 3.3 DIN ISO 3585 |
