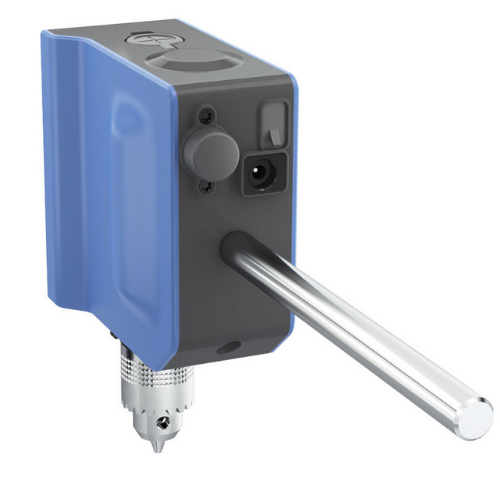

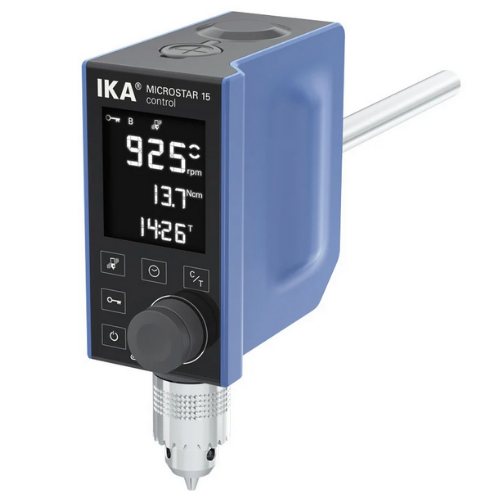

The new MICROSTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
“The Youngster” in the smallest high-tech class, moderately strong and fast!
Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
Clear display for all essential information at a glance
Integrated timer / counter for the control of kinetic sensitive reactions and reminders
Viscosities up to 8,000 mPas and volume of up to 10 l
Continuously adjustable speed between 0/30 – 1,000 rpm
USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
Intuitive and simple handling; touch-sensitive surface for long service life
Temperature reading on display
Chemical resistant housing
Key lock function
Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
Scope of delivery
MICROSTAR 15 control
R 300 shaft protector
Fasten screws for R 300 (2 pcs.)
H 67.60 Temperature sensor, stainless steel
chuck key
The new MICROSTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
“The Youngster” in the smallest high-tech class, moderately strong and fast!
Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
Clear display for all essential information at a glance
Integrated timer / counter for the control of kinetic sensitive reactions and reminders
Viscosities up to 8,000 mPas and volume of up to 10 l
Continuously adjustable speed between 0/30 – 1,000 rpm
USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
Intuitive and simple handling; touch-sensitive surface for long service life
Temperature reading on display
Chemical resistant housing
Key lock function
Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
Scope of delivery
MICROSTAR 15 control
R 300 shaft protector
Fasten screws for R 300 (2 pcs.)
H 67.60 Temperature sensor, stainless steel
chuck key
Reviews
There are no reviews yet.
Be the first to review “Overhead stirrer Microstar 15 control” Cancel reply
Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. A high heat output of 600 watts and stainless-steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.
• Digital display of temperature and speed
• Soft-start of stirring motor
• Strong magnetic field and wide speed range for volumes up to 15 liters
• Error code display
• Easy operation with touch keypad
Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 15 l
Motor rating output 2 W
Direction of rotation left
Speed display set-value LED
Speed control Button
Speed range 100 – 2000 rpm
Setting accuracy speed 50 rpm
Stirring bar length 20 – 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 28 +K
Heat output 600 W
Temperature display set-value LED
Temperature unit °C
Heating temperature range 50 – 320 °C
Heat control Button
Temperature setting range 50 – 320 °C
Heating rate heating plate 6 K/min
Connection for ext. temperature sensor ETS-D5
Adjustable safety circuit 100 – 360 °C
Set-up plate material stainless steel 1.4301
Set-up plate dimensions Ø 135 mm
Dimensions (W x H x D) 160 x 100 x 250 mm
Weight 3.845 kg
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 V
Frequency 50/60 Hz
Power input 620 W
Scope of delivery
• RH digital
• IKAFLON® 20 Magnetic stirring bar
• IKAFLON® 30 Magnetic stirring bar
• IKAFLON® 40 Magnetic stirring bar
• H 103 Cover for RH digital
• H 102.1 Protection handle
• Screwdriver (use for safety circuit)
