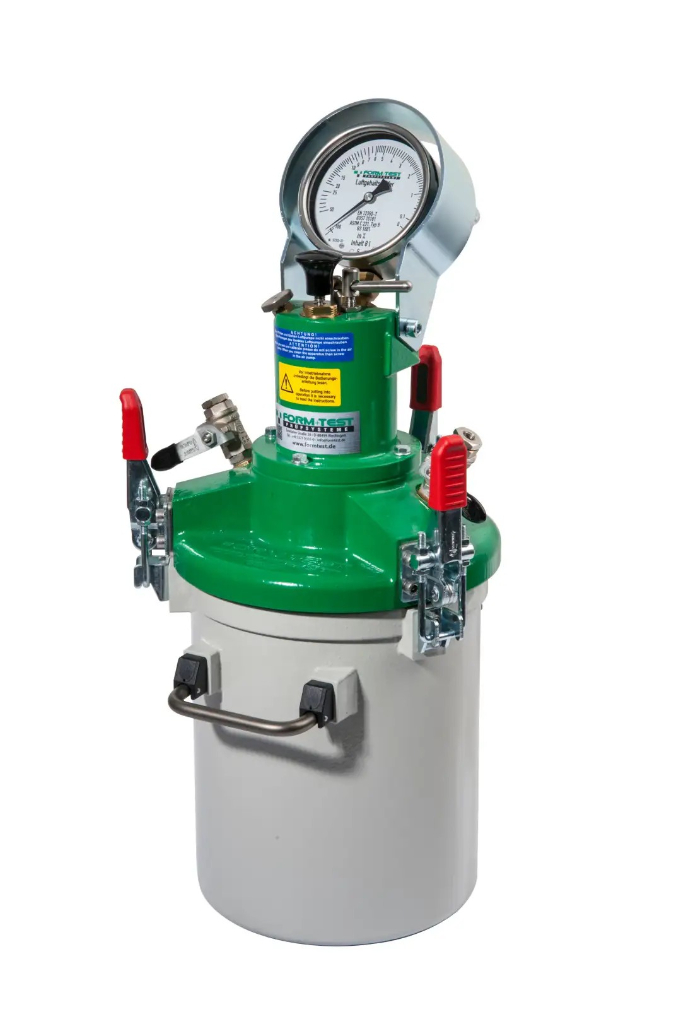

Fresh Concrete Testing Air Content Tester , 8l

Fresh Concrete Testing Air Content Tester , 8l

Fresh Concrete Testing
Air Content Tester /
Air Entrainment Meter
• compact apparatus
• with stable manometer protection
usable as handle for the upper part
• hand-operated pump for test pressure
• needle valve with knurled screw to reset the
pressure to “0%”
• durable and easy to service
• delivery with calibration tubes and washing bottle
Technical Data:
• content: 8 Liter
• weight: 12.4 kg
Standards:
• EN 12350-7
• DIN 1048 Teil 1
• ASTM C 231 – Type B
• BS 1881
• GOST 10181
Order No. B2020

Accessories:
Extension Collar / Filling Ring
• for easier filling
• with 3 clamping hooks
Order No. B2021 – 8 Liter
Order No. B20215 – 5.5 Liter
Carrying Case for B20225 (5,5 Liter)
• stable aluminium case with hard wearing
surface
• interior with rigid foam insert with space for
washing bottle and calibration tubes
• two solid and safe one hand tension locks
• vent holes in the bottom and in two
sidewalls
• dimensions approx.
height: 620 mm
(in grip position 665 mm)
width: 325 mm
depth: 345 mm
• weight (empty): 5.0 kg
Order No. B2024
