Shaking Water Bath
technical data:
|
oper. temp. range: |
25 … 100 °C |
admissible ambient temp. : |
1…40 °C |
|
temperature stability: |
±0,1 K |
bath volume: |
5-20 l |
|
temperature homogeneity: |
< 0,5 K |

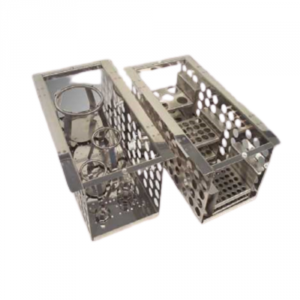

usable bath opening (basket): |
370×165 mm |
|
heating time (from 20 to 70°C) |
< 1,8 min/l |
usable bath depth (shaking basket):150 mm |
|
|
heat emission: |
<100 Wh |
dimensions (wxdxh) |
730x340x300 mm |
|
heating power: |
2000 W |
weight (without water): |
ca. 15 kg |
|
power supply: |
230 V,50/60 Hz |
shaking frequency: |
20…200 min-1 |
|
variable infinitely |
|||
|
temperature display: |
LED, digital |
shaking amplitude: |
16 mm |
|
design |
bath and cover plate made of stainless-steel body made of steel sheet, powder coated |
|
special design temperature controller |
on request micro-processor-controlled PID-regulator, three programmable fixed temperatures adjustable lower and upper set point limit, key locking visual and/or acoustic limit-value alarm, alarm function can be switched off temperature setting in Celsius or Fahrenheit |
|
timer |
three programmable fixed times, timer adjustable within 0 – 99,99 minutes |
