Sensor cable
Temperature sensors for the DuoLine STAR measuring systems
- Suitable for use in ATEX Zone 20/21
- Suspension bracket or floor socket
- Up to 15 temperature sensors on one measuring line
- Maximum measuring line length: 60 m
System

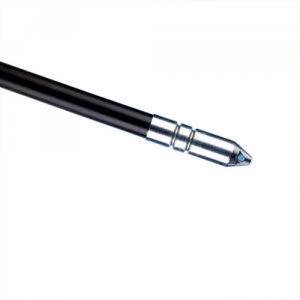

A sensor cable is attached in the silo in one or more locations for recording temperatures at different heights in a conventional grain silo. A sensor cable consists of a sensor cable head, a control module, a hollow cable with a measuring line and a conical tip. The control module is pre-wired in the factory
Up to 128 sensor cables (optionally 256 or 512 sensor cables) can be connected to the DLS temperature measuring system.
Variants

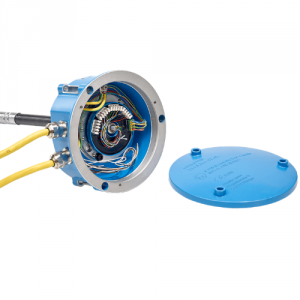

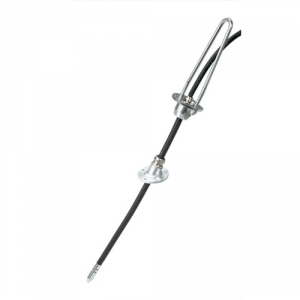

High-performance sensor cable with suspension bracket for fitting to supports, gangways and roof struts. High-performance sensor cable with floor socket for fitting to the silo roof or for casting in the concrete ceiling. The floor socket is a dust-tight housing which accommodates the sensor cable head with round control module.
Instead of a floor socket, a distribution box can be used to accommodate a round or rectangular control module. Several control modules can be accommodated in a large distribution box. Distribution boxes for bus cables are also available.
| Model | Item number |
|---|---|
| Sensor cable suspension bracket, 10 m, 6 measuring points | 1357 0310 |
| Sensor cable suspension bracket, 20 m, 6 measuring points | 1357 0620 |
| Accessories | Item number |
|---|---|
| Distribution box | 2236 0003 |
| Sensor cable floor socket, 10 m, 3 measuring points | 1359 0310 |
| Sensor cable floor socket, 20 m, 6 measuring points | 1359 0620 |
| Floor socket, concrete silo | 2136 8203 |
| Floor socket, steel silo | 2136 8204 |
| Control cable (bus cable) | 3234 3151 |
