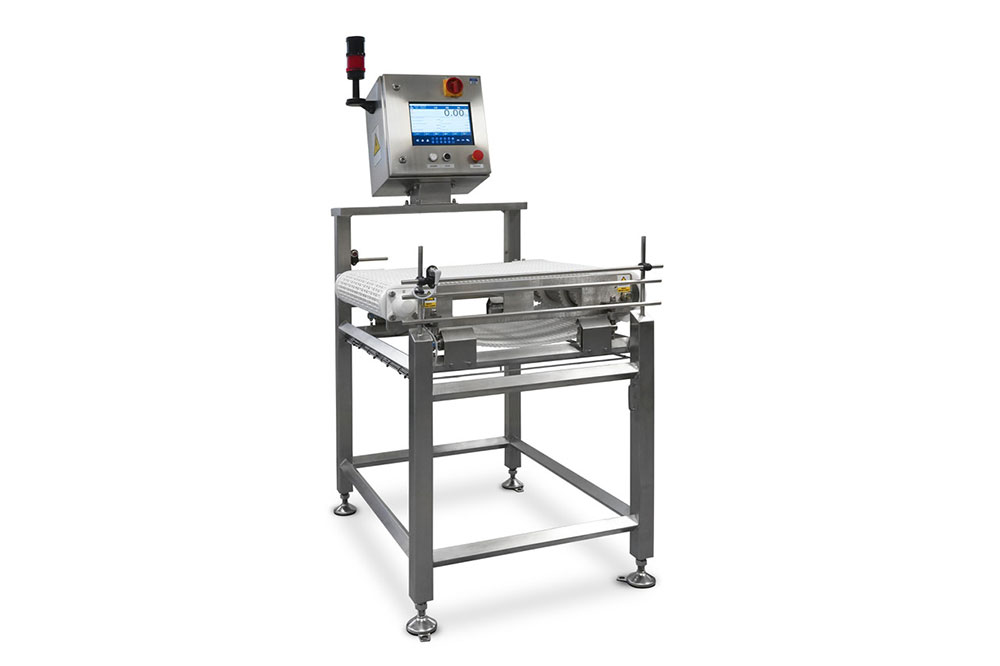

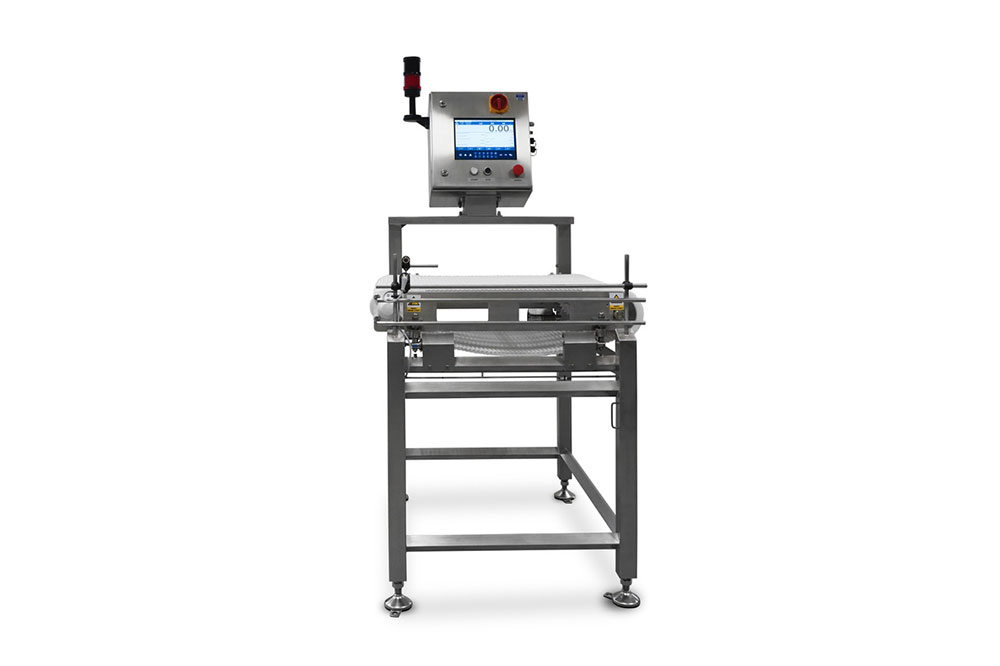

DWT/RC 120/HYF Automatic Checkweigher for High Humidity Food Industry
The DWT/RC/HYF series of automatic checkweighers is dedicated to work on technological lines in the food industry, where high humidity and frequent cleaning at high pressure are major problems. The construction has been designed to allow quick and easy cleaning. Special emphasis has been placed on eliminating voids, gaps and flat surfaces susceptible to condensation and water spots. The structure of the conveyor belt allows it to be washed both inside and outside without disassembly. The electronics were placed above the weighing platform to minimize the possibility of flooding the control panel.
| Metrological parameters |
| Maximum capacity [Max] |
120 kg |
| Minimum load |
1 kg |
| Readability [d] |
50 g |
| Tare range |
-120 kg |
| Physical parameters |
| Display |
10″ graphic colour touchscreen |
| Weighing platform height |
800 ±50 mm (other levels of platform on client requirement) |
| Construction |
Protection class IP 66/67 |
| Environmental conditions |
| Operating temperature |
-10 — +40 °C |
| Features of use |
| Conveyor velocity |
0.1 – 0.5 m/s |
