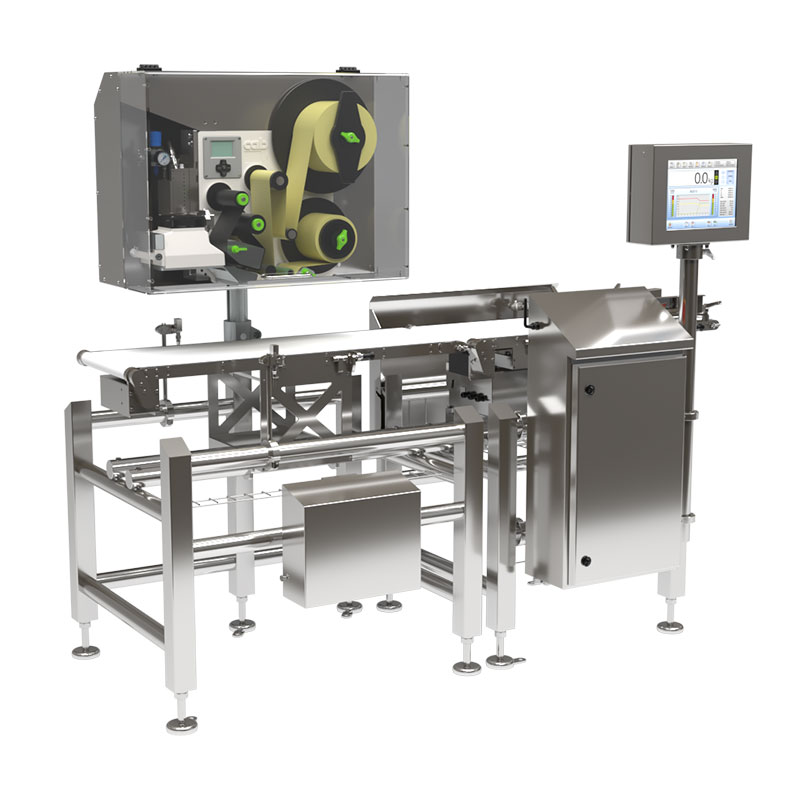

DWM HPE Labelling Checkweigher – Advanced 7.5 kg Weighing and Labelling Solution for Industry
You See Everything Even From a Distance
The device has been equipped with 12-inch, colour screen and a touch pannel. It can be programmed either using a terminal or remotely, with the Label Editor and E2R Checkweigher software run. Go for the solution which you find more convenient. And you design the labels from the Label Editor.
Apply the Labels the Way You Like
You can adjust the label application system to particular requirements of the production process of yours (application from the top, application from the side). To meet the most demanding requirements, we can apply tamp or blow label applicators mounted on the actuator or the rotary arm. Should you need to use metal detection and rejection systems, we can equip the device with them – its modular design allows that.
You Want to Know What For You Need It?
Well, the answer is this: mainly for industry. The DWM labelling checkweighers are intended for industry since it requires pre-packaged products of variable weight to be marked with labels including price. Our devices’ functions are as follows:
-
Constant-weight product labelling,
-
Variable-weight product labelling,
-
Single/ bulk/ pallet label printing,
-
Product sorting,
-
Contamination check-ups,
-
Weighed product record,
-
Freely configurable report module.
Apply the Labels the Way You Like
You can adjust the label application system to particular requirements of the production process of yours (application from the top, application from the side). To meet the most demanding requirements, we can apply tamp or blow label applicators mounted on the actuator or the rotary arm. Should you need to use metal detection and rejection systems, we can equip the device with them – its modular design allows that.
You Want to Know What For You Need It?
Well, the answer is this: mainly for industry. The DWM labelling checkweighers are intended for industry since it requires pre-packaged products of variable weight to be marked with labels including price. Our devices’ functions are as follows:
-
Constant-weight product labelling,
-
Variable-weight product labelling,
-
Single/ bulk/ pallet label printing,
-
Product sorting,
-
Contamination check-ups,
-
Weighed product record,
-
Freely configurable report module.
|
Metrological parameters
|
|
|---|---|
|
Maximum capacity [Max]
|
3000 – 7500 g
|
|
Readability [d]
|
1 – 5 g
|
|
OIML Class
|
XIII (1), Y (a)
|
|
Physical parameters
|
|
|---|---|
|
Display
|
12” graphic colour touchscreen
|
|
Labelling throughput
|
60 pcs/min
|
|
Print resolution
|
300/600 dpi
|
|
Print speed max
|
300 mm/s
|
|
Print width
|
106/162.6 mm
|
|
Label width
|
114/174 mm
|
|
Roller external diameter
|
305 mm
|
|
Print method
|
thermal / thermal transfer
|
|
Communication interface
|
|
|---|---|
|
Communication interface
|
Ethernet, USB, RS232, I / O
|
|
Construction
|
|
|---|---|
|
Construction
|
mild steel / Stainless steel
|
|
Weighing module
|
electromagnetic weighing module
|
