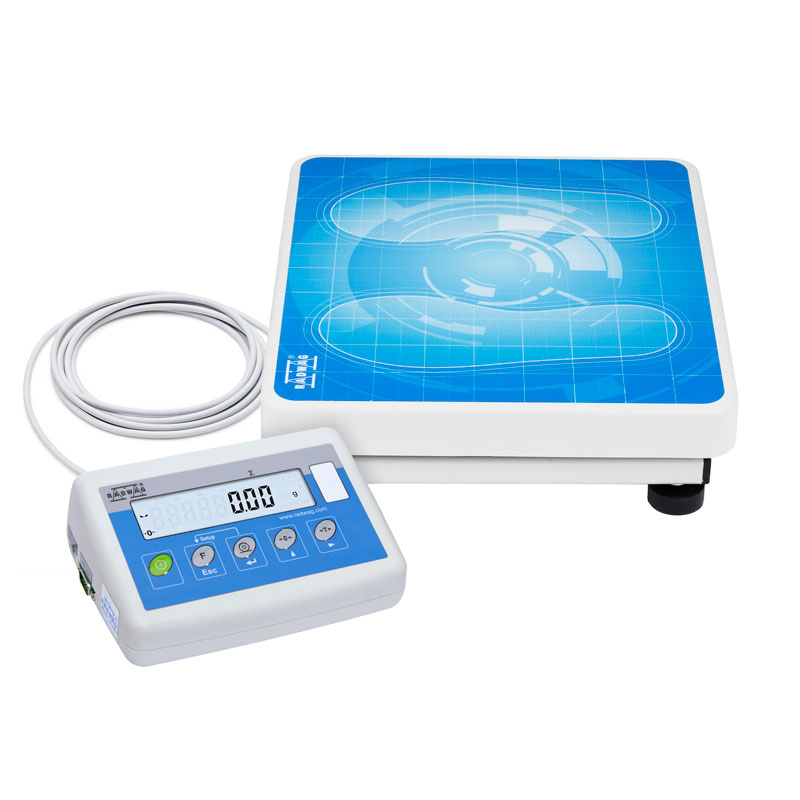

C315.100/200.OK-1 Personal Scale for Healthcare Facilities with PUE C315 Indicator
The scales is designed for weighing patients in health care facilities and in clinics. It is equipped with indicator PUE C315 series comprising a backlit LCD display and 5-button keyboard ensuring simple operation of scale basic functions. Personal scales is supplied either by mains or by batteries. The model without height-meter has an indicator attached to the weighing platform. It is manufactured as a dual range instrument.
| Metrological parameters | |
|---|---|
| Maximum capacity [Max] | 100 / 200 kg |
| Readability [d] | 50 / 100 g |
| Tare range | -200 kg |
| OIML Class | III |
| Physical parameters | |
|---|---|
| Display | LCD (backlit) |
| Packaging dimensions | 500×420×160 mm |
| Net weight | 6.5 kg |
| Gross weight | 8 kg |
| Communication interface | |
|---|---|
| Communication interface | RS232 |
| Optional interfaces | RS232 |
| Electrical parameters | |
|---|---|
| Power supply | 100 – 240 V AC 50/60 Hz and battery |
| Power consumption | max. 5 W |
| Operation time on batteries | up to 8 h |
| Environmental conditions | |
|---|---|
| Operating temperature | 0 — +40 °C |
| Relative humidity | 10% — 85% RH no condensation |
