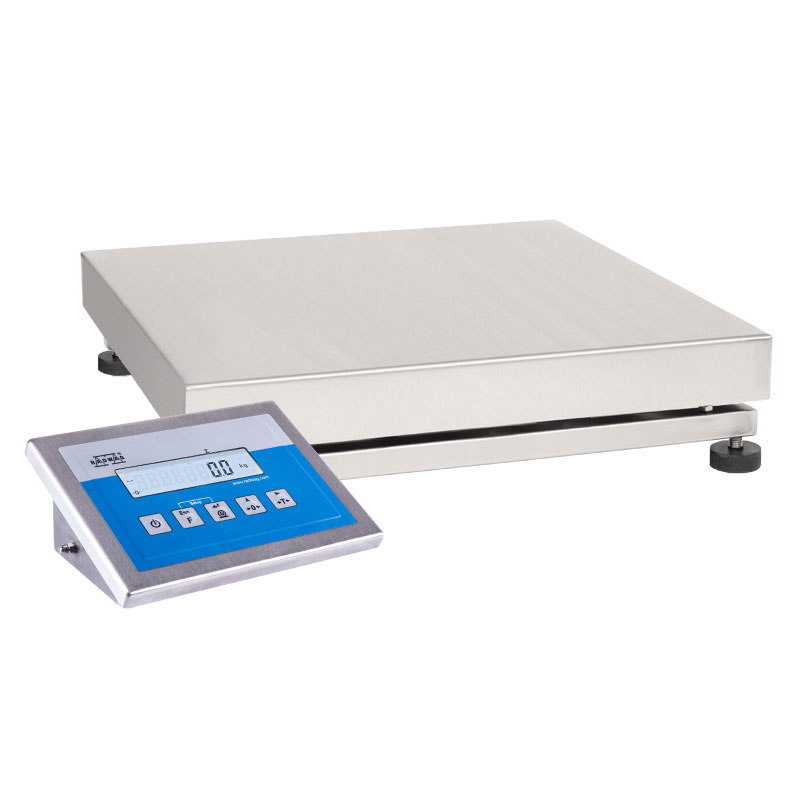

H315.150.HR4.K Waterproof Platform Scale with Stainless Steel Load Cell and Rechargeable Battery
Waterproof platform scales H315/HR series is designed for operation in locations with high humidity or direct contact with water.
The scales is easily used in areas with no access to power supply from mains, as it features an internal rechargeable accumulator.
Design Single load cell stainless steel platform scales H315 HR series is based on a terminal PUE H315 series. The terminal features large backlit LCD display and function buttons for easy operation. The terminal is installed on a pillar for easy readout of measurement result. Optionally, the scales is offered with indicator installed on a cable for mounting it on a wall.
The weighing platform structure is made of stainless steel class AISI 316 with a stainless steel load cell providing the highest IP rating of 68. The scales features RS 232 interface, and optionally an additional display socket. The scales is powered from mains or internal rechargeable accumulator. Optionally, the scales can be powered from mains – 110 — 120VAC 60Hz (non-standard factory option). Stainless Steel in RADWAG products Learn about the use and maintenance of stainless steel products: Stainless Steel in RADWAG products.
Standard and special applications
✓ Update as standard You always get the latest version of the device and software. We are constantly improving our products.
✓ This is priceless Technical support from the product developers. Who better to know the answers to your questions?
✓ Smaller carbon footprint A solidly packaged shipment travels only one way – the one to you.
✓ Long life for your balance In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.
✓ The important thing You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance. See in store (UK)
| Metrological parameters | |
|---|---|
| Maximum capacity [Max] | 150 kg |
| Minimum load | 1000 g |
| Readability [d] | 50 g |
| Verification unit [e] | 50 g |
| Tare range | -150 kg |
| Max readability for non-verified scale | 5 g |
| OIML Class | III |
| Physical parameters | |
|---|---|
| Display | LCD (backlit) |
| Weighing pan dimensions | 500×500 mm |
| Packaging dimensions | 610×610×330 mm |
| Net weight | 23.5 kg |
| Gross weight | 25.8 kg |
| Cable length | 2.5 m |
| Construction | |
|---|---|
| Protection class | IP 68 construction, IP 68 cell, IP 68 (1h max)/69 indicator |
| Construction | Stainless steel AISI316 |
| Communication interface | |
|---|---|
| Communication interface | RS232, USB |
| Optional interfaces | RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA |
| Electrical parameters | |
|---|---|
| Power supply | 100 – 240 V AC 50/60 Hz |
| Optional power supply | internal rechargeable battery |
| Operation time on batteries | max 7h |
| Environmental conditions | |
|---|---|
| Operating temperature | -10 — +40 °C |
| Storage temperature | -25 – +70 °C |
| Relative humidity | 10% — 85% RH no condensation |
