Our metal detection systems can be integrated quickly and easily into existing vacuum or pressure conveyor pipes. Even at high conveying speeds and temperatures, they reliably remove contaminants from pneumatically conveyed bulk goods with minimal loss of material for the plastics-processing, chemical, pharmaceutical and food industries. More information on how Sesotec metal detectors and separators work is available here.

The benefits in detail

• Thanks to quick-lock couplings and flanges, our metal detectors are extremely easy to integrate into piping systems, regardless of whether they are positioned vertically, horizontally or at an angle.
• They remove metallic contaminants without interrupting the flow of the conveyed material or reducing the conveying speed.
• They function reliably even at high conveying speeds and temperatures.
• The two-channel technology provides the highest sensitivity to all metals, regardless of whether they are magnetic or not, even when they are embedded in the product.
• Digital signal processing guarantees optimum security in line with EU directives.
• Preset operating parameters mean the control units are extremely easy to operate.
• An exportable, password-protected system logbook or the option of directly connecting to the company network ensures the necessary exchange of data.
• Our metal detection systems feature an auto-learn function to best compensate for the intrinsic conductivity of the inspected material.
• ATEX-compliant versions up to zone 20 are available.

Design and alternative configurations

Simple and easy assembly

All components come pre-assembled, and the assembly frame ensures quick and easy installation. A compact design also helps you save space.

Separation system

Thanks to its responsive shutter flap, the “Quick-Flap” separation unit safely removes metal particles even at high conveying speeds without interrupting the flow of the conveyed material. It also prevents leak air from entering the conveyor pipes. The entire separation mechanics, junctions and separation flap are made out of stainless steel (1.4301).

Different pipe diameters

Integration into already existing conveyor pipe systems with standard nominal widths up to 150 mm is possible without any issue thanks to quick-lock couplings and ventilation flanges.

Products

GF

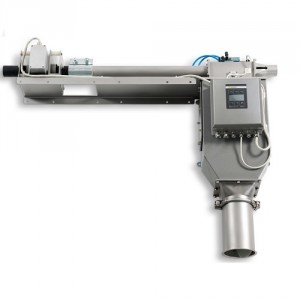

Metal separator for pneumatic conveyor pipes
Product Brochure

GF 4000

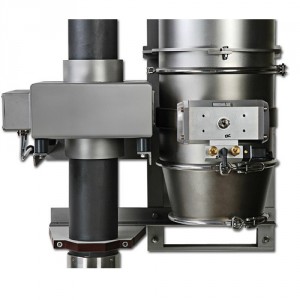

Metal separator for pneumatic conveyor pipes with high hygienic requirements
Product Brochure
