External load cell digital force gauges – SADFGE-P

Ask for quote

0.00 RON (VAT included)
External load cell digital force gauges – SADFGE-P
SKU: SADFGE-P Category:
Ask for advice from a consultant: +40 21 25 53 132
Ask for quote
Please fill out the following form. Attention! Fields marked with * are required!

    External load cell digital force gauges – SADFGE-P

    External load cell digital force gauges – SADFGE-P

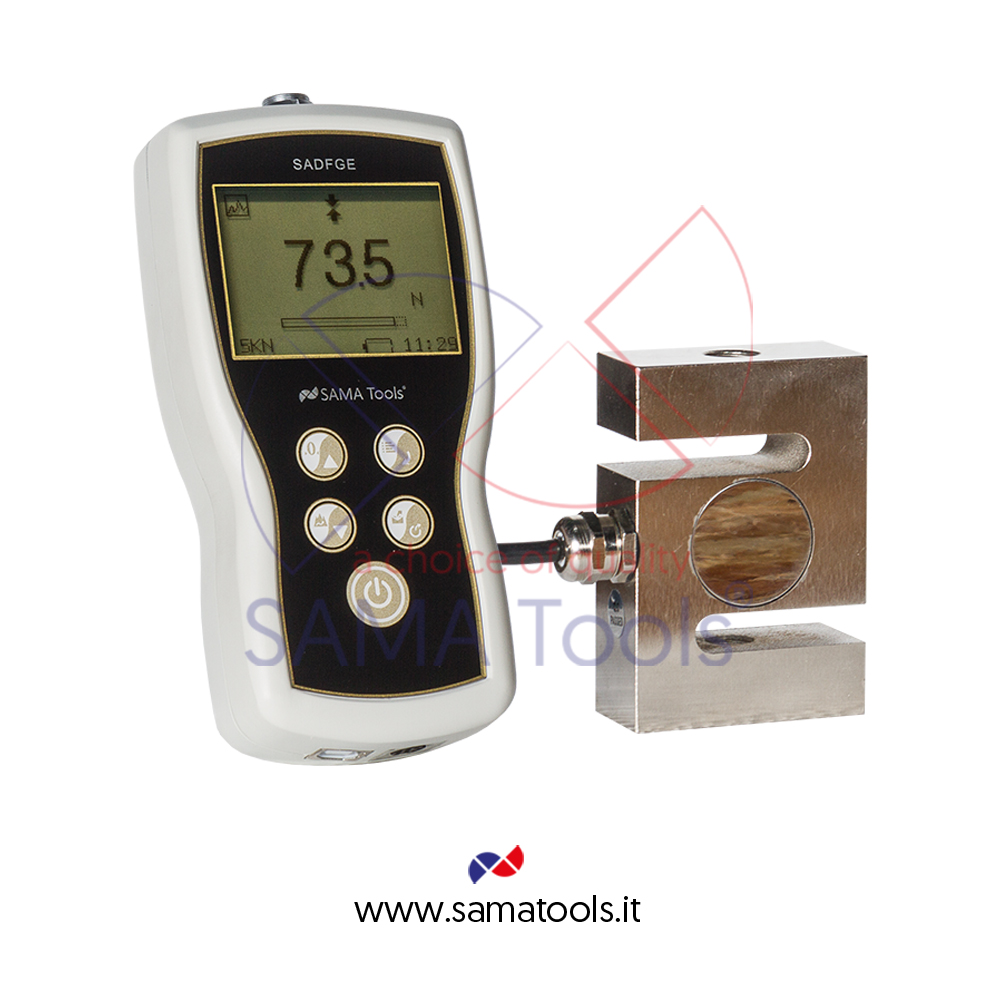

    Devices employed to measure tension and compression force like standard models, but also able to operate over a range of 1000N.

    This kind of force gauges features external load cells which can’t be included in the instrument body due to their larger dimensions, needed to bear greater loads. Widely used in every main industrial field.

    Similar

    Digital Force Gauges
    High precision digital Force Gauges

    Standard Supply:
    Main unit
    Outside load cell
    Cable and software
    Carrying case
    User’s manual

    Optional Accessories:
    Printer
    Adapter disk and spoke type
    Clamps
    Test stands
    Calibration report

    Model

    SADFGE-P

    0001K-S

    0002K-S

    0005K-S

    0010K-S

    0020K-S

    0010K-R

    0020K-R

    0050K-R

    0100K-R

    0200K-R

    Standard

    ISO 376 ; ASTM E 74

    Capacity

    1 KN

    2 KN

    5 KN

    10 KN

    20 KN

    10 KN

    20 KN

    50 KN

    100 KN

    200 KN

    Resolution

    0,1 N

    0,5 N

    1 N

    5 N

    1 N

    5 N

    10 N

    50 N

    Accuracy

    ± 0,2% F.S.

    Min. load

    0,2% F.S.

    Load cell

    External

    ( S-beam )

    External

    ( spoke type only compression )

    Measuring units

    N, Kgf, lbf, ozf, gf

    Functions

    Track ; Peak ; Auto-peak ; First-peak ; PreSet ( max/min )

    Display reading sense

    Reversible



    Memory

    1.000 values

    Data output

    Power supply

    Rechargeable battery

    Dimensions

    145 x 73 x 33,5 mm ( main unit )

    Weight

    450 g ( main unit )
