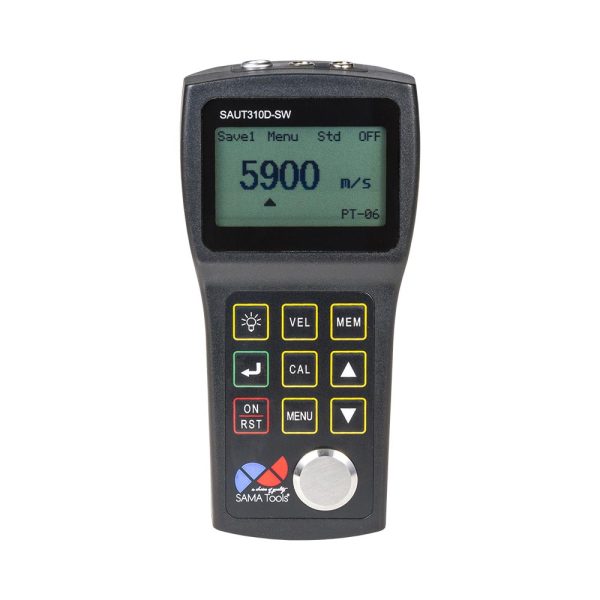

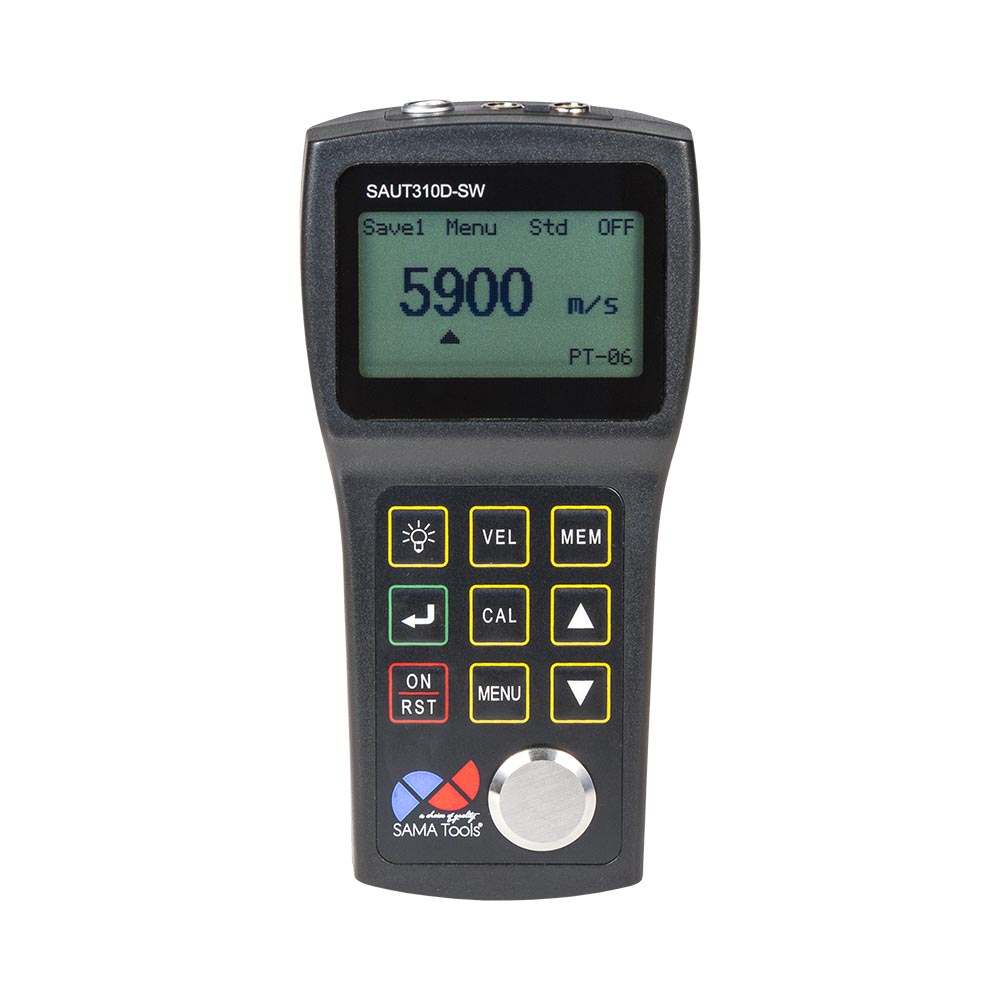

Through coatings thickness gauge software included – SAUT310D-SW
Through coatings thickness gauge software included – SAUT310D-SW
SAUT310D-SW series includes thickness gauges able to measure thickness even through paints and coatings.
In presence of non metallic coatings applied on metallic substrates, they can operate on “Through coating” mode, across paints , to detect thickness of the underlying material.
These instruments are distinguished for simplicity of use, high precision and flexibility of use that allow using verify without further works : tanks, molded and under pressure tanks, even if they’ve been painted.
|
SAUT310D-SW – Scheda tecnica sonde / Probes data sheet |
|||||
|
Modello / Model |
Freq. Mhz |
Ø est/contatto Ø ext/contact |
Campo di misura (acciaio) Measuring range (steel) |
Ø Min. misurabile Ø Min.measurable |
Impiego / Usage |
|
SAPT-04 |
10 |
6 / 4 mm |
0,7 ~ 12 mm |
12 x 2,0 mm |
Mini-probe |
|
SAPT-06 |
7,5 |
9 / 6 mm |
0,8 ~ 30 mm |
15 x 2,0 mm |
Small probe |
|
SAPT-08 |
5 |
11 / 8 mm |
0,8 ~ 100 mm |
20 x 3,0 mm |
Standard probe Through-coating |
|
SAPT-12 |
13 / 10 mm |
1,0 ~ 150 mm |
20 x 3,0 mm |
Normal probe |
|
|
SAPT-13 |
15 / 10 mm |
4,0 ~ 80 mm |
20 x 3,0 mm |
High temperature probe ( ≤ 380 °C ) |
|
|
SAPT-16 |
2 |
17 / 12 mm |
4,0 ~ 300 mm |
30 x 3,0 mm |
Low frequency probe |
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Sonda standard / Standard probe
Gel di accoppiamento 50 ml / 50 ml couplant gel
Cavo e software / Cable and software
Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Sonde opzionali / Optional probes
Master di calibrazione 6 step / 6 steps calibration block
Gel 50ml-260ml-1lt-5lt / 50ml-260ml-1lt-5lt couplant gel
Certificato di taratura / Calibration report
|
Modello / Model |
SAUT310D-SW |
|
|
Standard |
ASTM E 797 ; EN 15317 |
|
|
Campo di misura Measuring range |
I-E Standard |
0,8 ~ 300 mm ( ref. steel ) |
|
E-E Attraverso vernici / Through coating |
3 ~ 18 mm [ coating < 2 mm ] ( with probe SAPT-08 ) |
|
|
Sonda standard / Standard probe |
SAPT-08 ( 5 Mhz ) |
|
|
Risoluzione / Resolution |
0,01 mm |
|
|
Precisione / Accuracy |
± 0,05 mm [ ≤ 10 mm ] ± ( 0,5% n + 0,01 ) mm [ > 10 mm ] |
|
|
Velocità di propagazione del suono nel materiale Sound velocity range |
1.000 ~ 9.999 m/s |
|
|
Unità di misura / Measuring units |
mm ; inch |
|
|
Modalità di misura / Measurement mode |
Single ; Scan ; Min. capture ; Through coating |
|
|
Calibrazione / Calibration |
1 point or 2 points |
|
|
Memoria interna / Internal memory |
5 groups (100 values each one ) |
|
|
Uscita dati / Data output |
√ |
|
|
Indicatore batterie scariche / Low battery indicator |
√ |
|
|
Autospegnimento / Auto switch-off |
√ |
|
|
Alimentazione / Power supply |
AA batteries |
|
|
Dimensioni / Dimensions |
149 x 73 x 32 mm |
|
|
Peso / Weight |
160 g |
|
