Testing of Hardened Concrete, Wet and Dry Storage

Testing of Hardened Concrete, Wet and Dry Storage

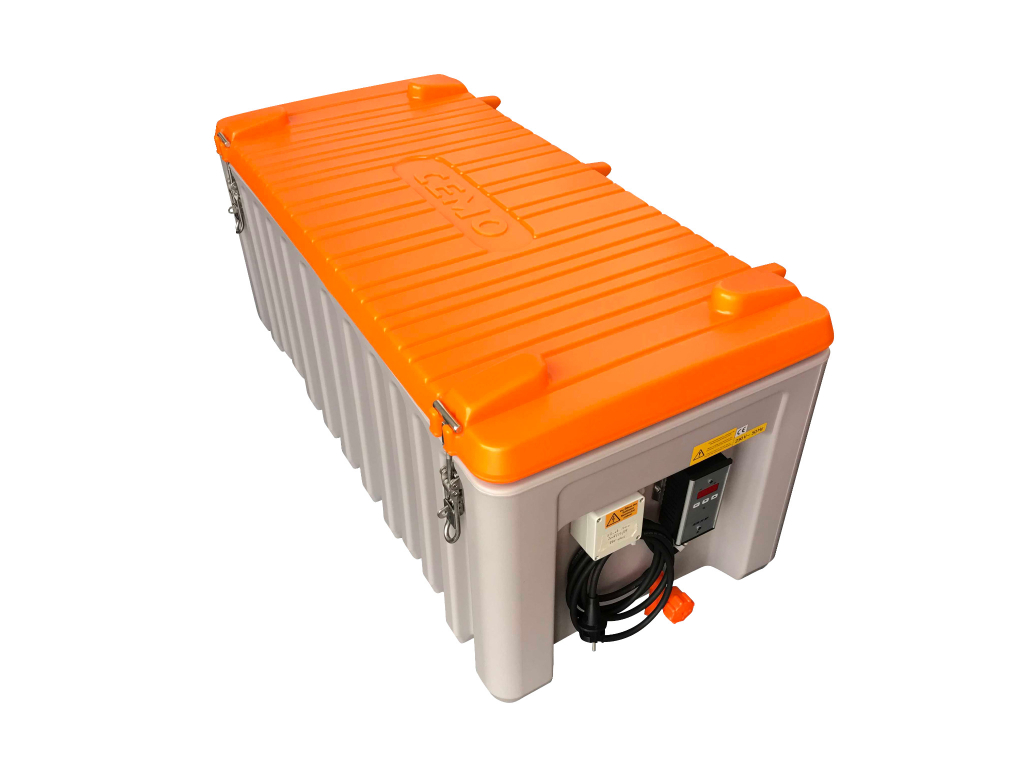

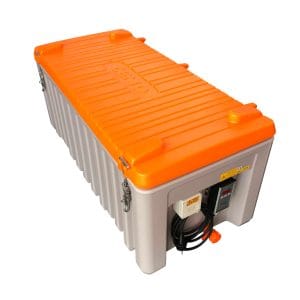

Plastic Climatic Box acc. to EN 12390-2 (DIN 1048-5)

for standard-compliant storage of 12 test cubes 150 x 150 x 150 mm

stainless steel grid
with integrated handles
with cover stop
with 2 eccentric locks – lockable with padlock (optional)
circumferential integrated seal
digital display with real temperature display
set value recallable by push-button
LED digits approx. 8 mm high
heating system electronically controlled
factory setting 20°C
temperature range: max. up to 25°C
drain cock
voltage: 230V/50Hz – 1.5 KW
biicolored
outer dimensions: 1200 x 660 x 540 mm
inner dimensions: 1070 x 450 x 410 mm
weight: approx. 24 kg

Order-No. B2111

[Plastic Climatic Box acc. to EN 12390-2 (DIN 1048-5)]

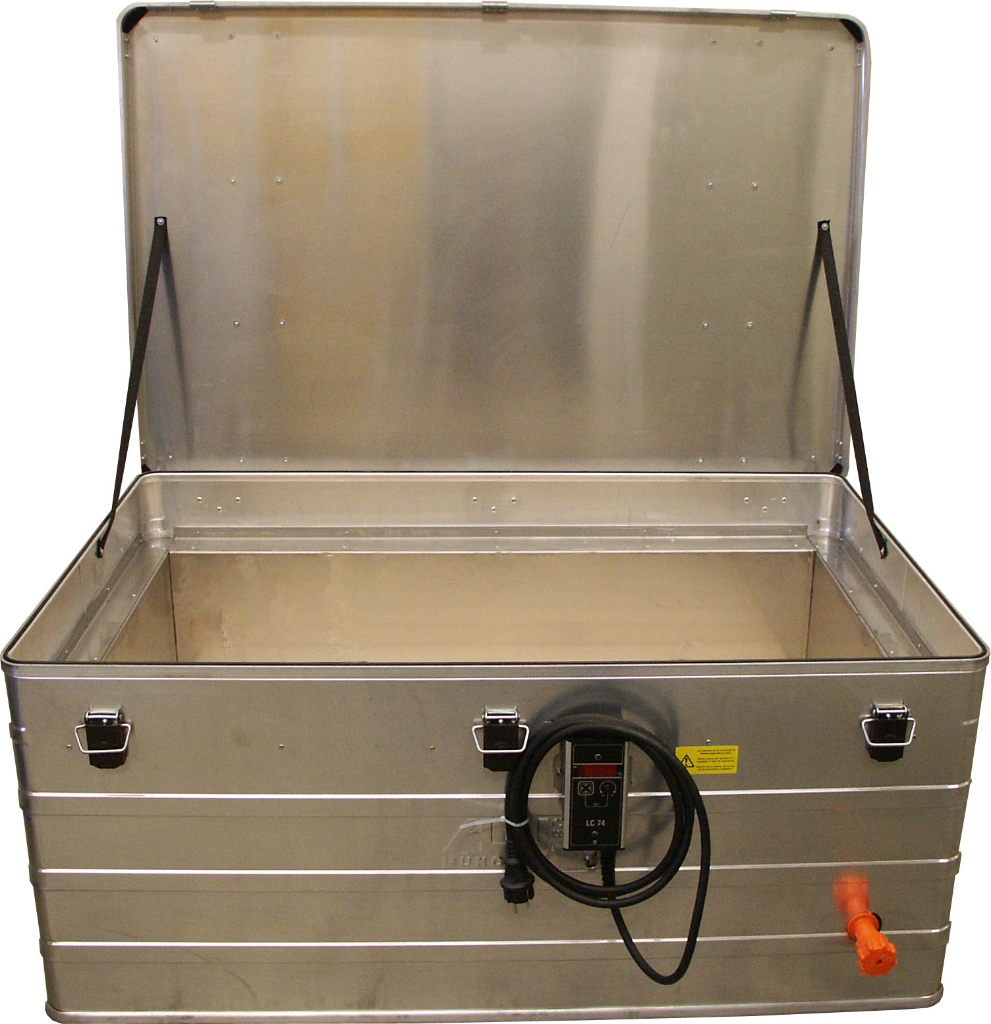

Climatic Box

for the storage of 12 test cubes 200 x 200 x 200 mm or
24 test cubes 150 x 150 x 150 mm

digital display
heating unit microprocessor controlled
factory setting 20°C
temperature range up to max. 25° C
nominal and real temperature display
incl. water outlet

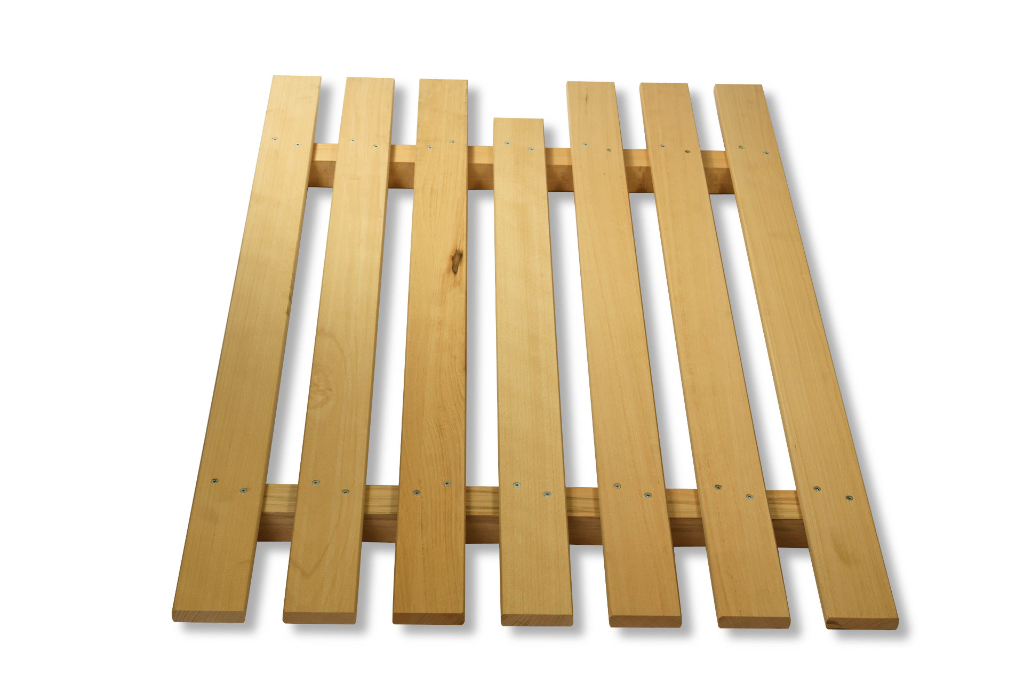

incl. wooden floor
inner container made of stainless steel, 2 mm thick
outer container made of aluminium, insulated

Dimensions:

outer (L x B x H) 1200 x 800 x 510 mm
inner (L x B x H) 1050 x 610 x 310 mm
weight: approx. 54 kg

Order-No. B2112
