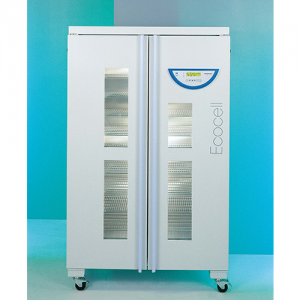

Economic Drying Ovens Ecocell

Economic Drying Ovens Ecocell

Convincingly cost saving

A line of economical drying ovens with a wide temperature range, precise and reliable course of simple drying and heating processes. The line ECOCELL is characterized by a noiseless run and a fine air streaming within the useful space.

• Internal dim. of the chamber:  22, 55, 111, 222, 404, 707 liters
• Working temperaure: 5 °C above ambient temperature up to  250 °C/300 °C
• Interior:  stainles steel, mat No.1.4301 (AISI 304)

The versatile standard line with microprocessor control unit:

·         The Standard-line is provided with a microprocessor control unit with adaptation for every particular unit type and volume through a Fuzzy-Logic program. The process information is displayed on a clear LED display. The control elements are placed on a foil keyboard.

·         3 adjustable programs

·         RS 232 – interface for printer or PC – communication

·         delayed heating start and stop function

·         acoustic and visual alarm in error state

·         time range 99 hours 59 minutes

·         digital safety termostat

·         manual control of the air exhaust flap

The high-tech comfort line with multi-functional microprocessor control unit :

·         The Comfort-line is provided with a multiprocessor control system with adaptation for every particular unit type and volume through a Fuzzy-Logic program. The process information is displayed on a clear LCD two-line display. The control elements are placed on a foil keyboard.

·         6 adjustable programs

·         chip card system for individual program storage

·         RS 232 – interface for printer or PC – communication

·         delayed heating start and stop function

·         acoustic and visual alarm in error state

·         time range 0–40 years with 1 min-intervals

·         digital safety termostat

·         real time

·         selectable rate of temperature increase or decrease – RAMPS

·         programing of program time segments – SEGMENTS

·         programme cycles

·         manual control of the air exhaust flap

·         keyboard blocking

·         door opening control
