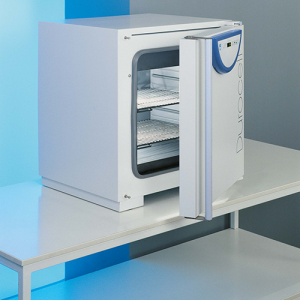

Durocell Drying Ovens

Durocell Drying Ovens

A special line of drying ovens DUROCELL with a highly resistant coating of EPOLON that protects the inner stainless steel surfaces from aggressive agents, such as acids and liquors. These units enable an optimal tempering of materials. They are ideal for acid and basic hydrolysis, extraction through incombustible substances and decomposition of substances at a solid phase.

• Internal dim. of the chamber: 22, 55, 111, 222 liters
• Working temperature: 5 °C above ambient temperature up to 125 °C
• Interior:  stainless steel, mat No.1.4301 (AISI 304)

The versatile standard line with microprocessor control unit:

·         The Standard-line is provided with a microprocessor control unit with adaptation for every particular unit type and volume through a Fuzzy-Logic program. The process information is displayed on a clear LED display. The control elements are placed on a foil keyboard.

·         3 adjustable programs

·         RS 232 – interface for printer or PC – communication

·         delayed heating start and stop function

·         acoustic and visual alarm in error state

·         time range 99 hours 59 minutes

·         digital safety termostat

·         manual control of the air exhaust flap

The high-tech comfort line with multi-functional microprocessor control unit :

·         The Comfort-line is provided with a multiprocessor control system with adaptation for every particular unit type and volume through a Fuzzy-Logic program. The process information is displayed on a clear LCD two-line display. The control elements are placed on a foil keyboard.

·         6 adjustable programs

·         chip card system for individual program storage

·         RS 232 – interface for printer or PC – communication

·         delayed heating start and stop function

·         acoustic and visual alarm in error state

·         time range 0–40 years with 1 min-intervals

·         digital safety termostat

·         real time

·         selectable rate of temperature increase or decrease – RAMPS

·         programing of program time segments – SEGMENTS

·         programme cycles

·         manual control of the air exhaust flap

·         keyboard blocking

·         door opening control
