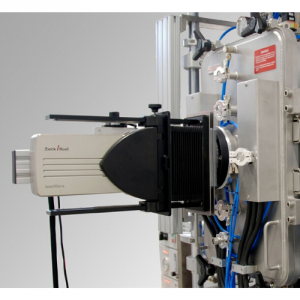

laserXtens 1-32 HP/TZ

The laserXtens 1-32 HP/TZ includes one camera, two green laser light sources for measurement at very high temperatures, and one telecentric lens for reduction of distance changes between the lens and specimen. The measuring principle eliminates the need to apply gauge marks.

The laserXtens 1-32 HP/TZ is intended for use with vacuum chambers, furnaces, and induction up to a temperature range of +2,000°C.

When using the laserXtens 1-32 HP/TZ in connection with temperature chambers and high temperature furnaces, it must be taken into consideration that the measurement signal may be negatively influenced due to changed optical conditions such as air currents. These influences are minimized by means of an optical tunnel.
