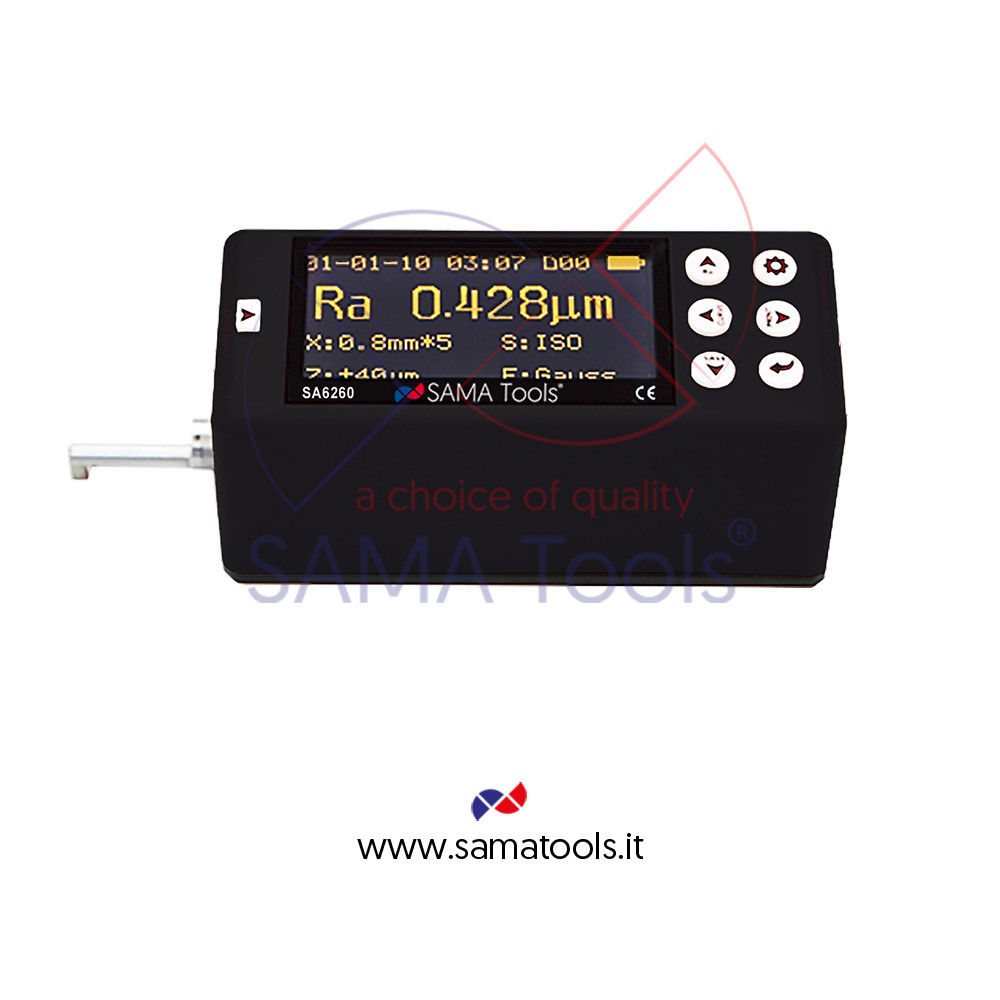

Surface roughness testers with graphic software – SA6260
Surface roughness testers with graphic software – SA6260
This highly professional instrument allows the measurement of many parameters and to show the profile on display. Equipped with a remote control to avoid movements during measurement, it is suitable for use both in production and in laboratory, as well as for use on test stand. Commonly employed for quality control activities and to check incoming and outgoing goods.
|
Modello / Model |
SA6260 |
|
|
Standard |
ISO 4287 ; BS 1134 ; JIS B 0601 ; ASME B46.1 ; VDA 2006 ; ISO 13565 |
|
|
Parametri / Parameters |
Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rz (JIS), Ry (JIS), RSk, R3z, Rmax, Rpc, Rmr, Rku, RΔa, RΔq, Rδc, Ry, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, V0 |
|
|
Campo di misura Measuring range |
Ra, Rq |
0,005 ~ 80 µm |
|
Rz, R3z, Ry, Rt, Rp, Rm |
0,02 ~ 320 µm |
|
|
Sk |
0 ~ 100% |
|
|
S, Sm |
1 mm |
|
|
tp |
0 ~ 100% |
|
|
Risoluzione / Resolution |
0,001 µm [< 10 µm] ; 0,01 µm [10 µm ≤ n < 100 µm] ; 0,1 µm [> 100 µm] |
|
|
Precisione / Accuracy |
≤ ± 10% |
|
|
Ripetibilità / Repeatability |
≤ 6% |
|
|
Unità di misura / Measuring units |
µm ; mil |
|
|
Schermo grafico / Graphic display |
Roughness profile ; Material ratio curve ; Direct profile |
|
|
Filtri digitali / Digital filters |
RC ; PC-RC ; Gauss ; D-P |
|
|
Tastatore / Probe |
Raggio sensore Pin radius |
5 µm |
|
Materiale sensore Pin material |
Diamond |
|
|
Forza applicata Measuring force |
< 4 mN |
|
|
Angolo / Angle |
90° |
|
|
Lunghezza di campionamento / Cutoff |
0,25 mm ; 0,8 mm ; 2,5 mm |
|
|
Lunghezza di valutazione / Evaluation length |
1 ~ 5 Cutoff |
|
|
Corsa massima / Maximum driving stroke |
17,5 mm |
|
|
Velocità del tastatore Driving speed |
Cutoff = 0,25 mm |
0,15 mm/s |
|
Cutoff = 0,8 mm |
0,5 mm/s |
|
|
Cutoff = 2,5 mm |
1 mm/s |
|
|
Ritorno / Returning |
1 mm/s |
|
|
Memoria / Memory |
20 groups + SD card slot |
|
|
Ieșire de date |
√ |
|
|
Auto switch-off |
√ |
|
|
Alimentare |
Baterie reîncărcabilă |
|
|
Dimensiuni |
112 x 50 x 47 mm |
|
|
Greutate |
360 g |
|
