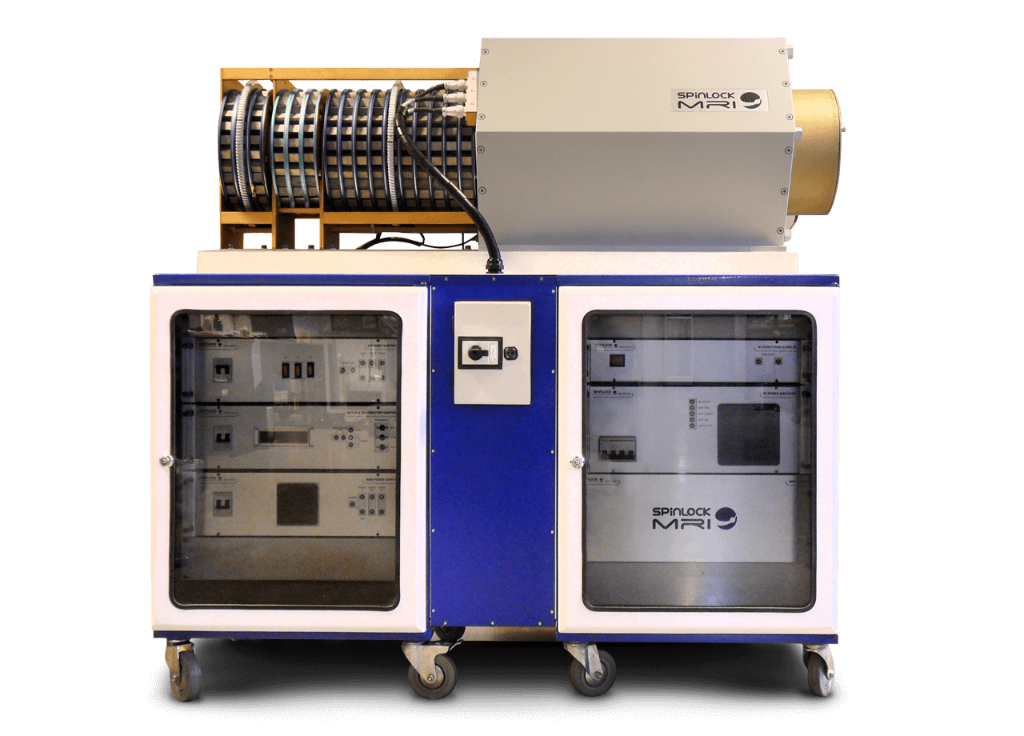

SLK 1400

SLK 1400

NMR Spectometer.
Time Domain Magnetic Resonance Spectrometer (TD-NMR).
Capable of performing magnetic resonance imaging (MRI).


• Bore size from ø 1″ to 4″.
• Magnet: Halbach array.
• Temperature control and compensation

  Agriculture & Food



  • Measurement of all samples in a food Production line

  • Liquid edible oil flowmeter

  • Multiphase oil flow characterization

  • Any kind of food samples on a pass-Through environment

  Oil & Gas



  • Core measurements (pore size distribution profile on core & core plugs)

  • Paraffin measurement on pass-through flow, 4′ core or other media

  • Imaging of flow patterns

  Biofuels



  • Monitoring water-solid contents in biomass

  • Monitoring biodiesel transesterification process

  • Determine biodiesel feedstock in grain

  Textile

  • Artificial fiber inline metering for opu spin finish content



  Description

  Time domain magnetic resonance equipment (TD-NMR) suitable for imaging (MRI) with a ø 4´ circular Halbach magnet, with temperature control and compensation. Possible experiments include Time Domain Magnetic Resonance Imaging (MRI) (TD-NMR). Variety of programmable pulse sequences: CPMG, Spin-Echo, SSFP, CWFP, PGNMR, Diffusion Coefficients, T1 and T2 Profiles, among others.

  Technical Specifications

  • Imaging (MRI)

  • Spinlock’s Condor Research Software (TM) Includes data acquisition, filtering and analysis

  • Sample holders (diameter) 3/16 to 4 inches

  • Includes additional accessories for diffusion experiments (1D gradient)

  • 9 to 13 MHz resonance frequency

  • Configurable during the manufacturing process

  • Clean and environmentally friendly

  • Modular design

  • Low maintenance

  • Immediate results (<2 minutes)

  • Includes high pressure and high temperature sample holders
