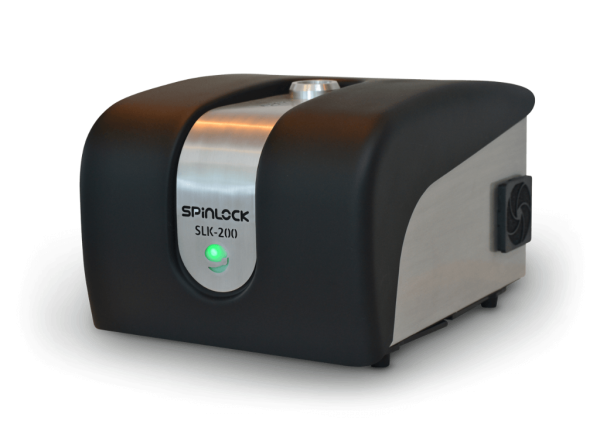

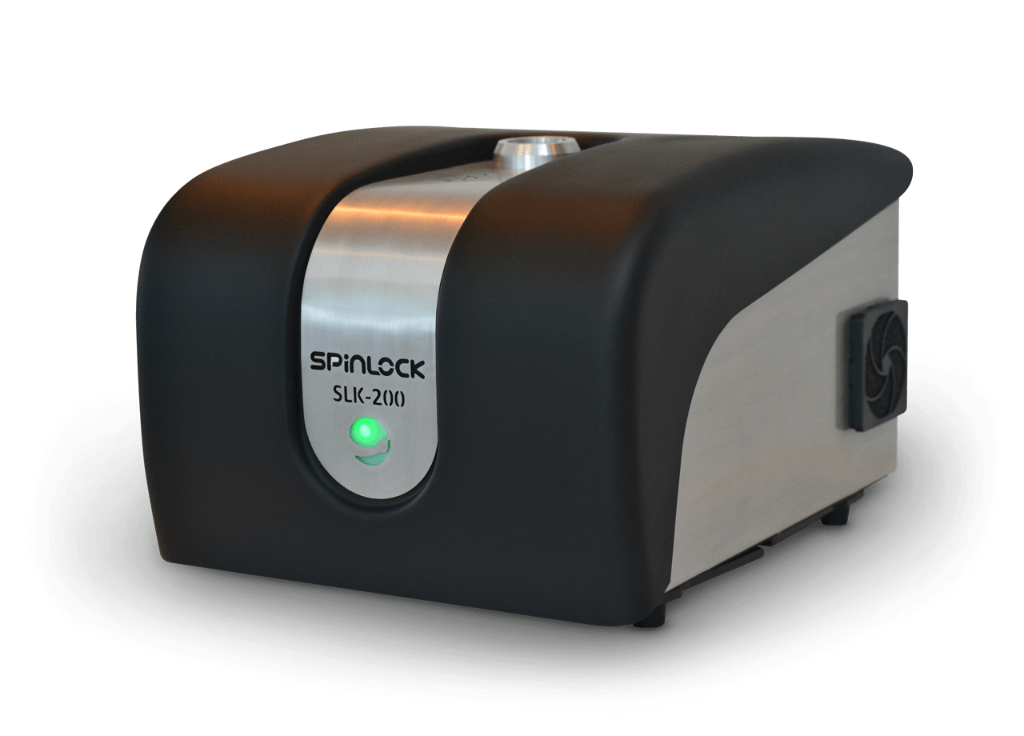

SLK 200
Desktop magnetic resonance equipment for measurement of oil or fat, moisture, fatty acid and protein content in different types of seeds, oils and food. Simultaneous, non-destructive and automated determination
Industrial Applications
Agriculture & Food
• Avocado
• Chocolate
• Dairy
• Mayonnaise and Sauces
• Oil, Seeds, Cereals and Oleaginous
• Olive
Biofuels
• Biodiesel and more
Textile
• artificial, synthetic and more fiber loaders
Features
Multiple parameters a single equipment
The SLK 200 is capable of simultaneously analyzing the percentage of moisture, oil-fat, protein, oleic acid and main fatty acids in all types of samples.
*For the measurement of some parameters, it is necessary to add special modules to the equipment.
Accurate resultes in seconds
In just seconds you can see the results on your PC with an accuracy greater than 98%:
04” Oil and Moisture
12” Protein
20” Fatty Acids
No sample preparation required
The analysis does not affect or destroy the samples
Automatable and easy to use
Intuitive and User-Friendly Software. With a short training allows the user to make their own measurements.
Measurements
Desktop magnetic resonance equipment (TD-NMR) for measurement of oil or fat, moisture, fatty acid and protein content. It makes simultaneous, non-destructive and automated determinations of these patterns.
Inside the box
The standard version of this equipment features the NMR Spectrometer, 2 bulk sample holders, the SLK software for measurement and a desktop PC.
Optional
Bulk sample holders, sample holders for unique seed measurement, software for measurement in other applications or samples, electronic scale to connect to NMR and PC.
SLK 200 Software
All Spinlock Software is developed entirely in-house, compatible with MS-Windows based computers to control the SLK 200 and visualize all results. Signals and measurements can be saved in a database which is then exported to .dat, .pdf and .xls type of files (MS-Excel). The SLK200 works with a USB port and can be connected to a desktop CPU or a laptop. And is updated regularly.
Spinlock offers 2 types of software
- Industrial / Commercial Software:
Characterized for user-friendliness, does not require a qualified operator.
- Research Software:
This allows full flexibility in operations. Permits programming any pulse sequence or NMR experiment.
