Hardness testing machine DuraJet

Hardness testing machine DuraJet

The robust multi-talent DuraJet G5

Thanks to electronic load application and a load range from 9.8 N to 2450 N (1 kgf to 250 kgf), the complete Rockwell range is covered with just one device. Furthermore, tests on plastics and carbon as well as Vickers and Brinell tests can be performed in depth. This flexibility coupled with very simple operation predestines the DuraJet G5 for use wherever several devices have previously been used in different configurations.


Product features and options

Sophisticated and innovative functions simplify day-to-day work. Furthermore, the DuraJet G5 features the latest technologies in order to provide the perfect solution for production and laboratory in the future as well.

Electronic load application

Flexibility and conformity with standards through permanent electronic monitoring of the test loads plus precise, fully automatic control of the whole test cycle.

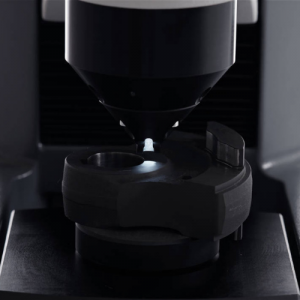

Working space lighting

An LED integrated into the nose cone illuminates the working area around the measuring point so that precise positioning of the test points presents no problems, even in difficult light conditions. The LED is positioned absolutely glare-free and can be progressively dimmed.

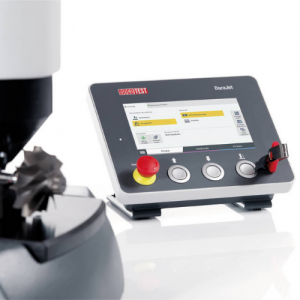

ecos Workflow DuraJet Edition

Intuitive user guidance coupled with many sophisticated functions, implemented on a pure PLC platform.
Reports can also be prepared and printed. Furthermore, all test results can be stored on a network drive or USB flash drive.

Integration into production plants

Thanks to an optionally available interface, it is possible to integrate the DuraJet G5 into an automated system and hence also carry out 100% testing without removing test specimens from the production process. Another possibility is to connect the available foot pedal to the interface, in order to control the clamping and testing cycle.
