Automated specimen preparation system
Plastic specimen preparation or machining
Standard thermoplastic and thermoset molding specimen are produced by injection or compression molding. Material characteristics are significantly influenced by production parameters such as pressure, temperature, and flow speed. Specimens are taken from slabs and components through mechanical processing such as per ISO 2818.
Automated specimen preparation system

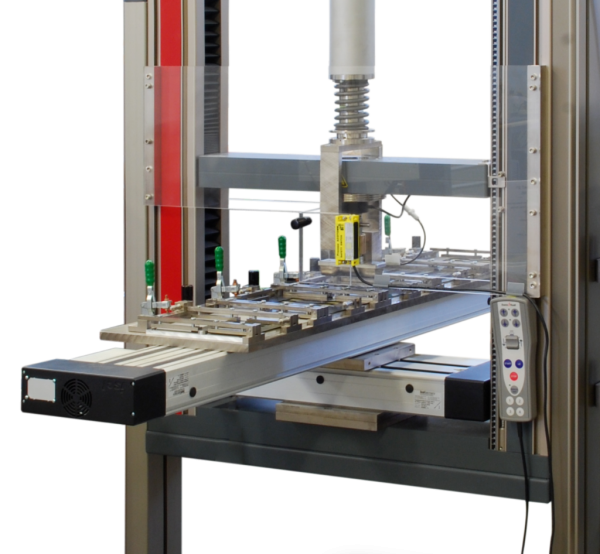

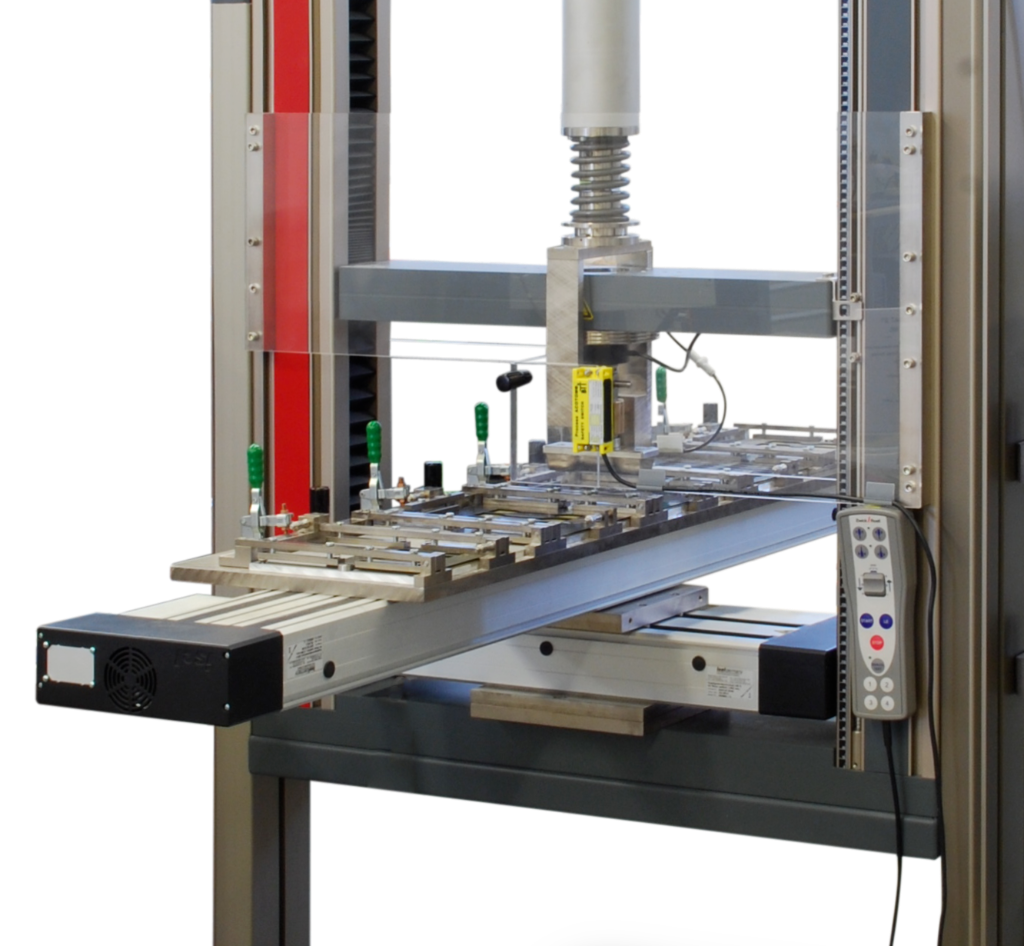

A 10kN materials testing machine with motorized X-Y table is used with the automatic specimen-blanking machine.
Key features:
- The operator is protected by a safety device around the blanking tool and the moving crosshead.
- Specimen sheets are placed on the motor-driven X-Y table and secured with quick-acting clamps. The system is started and specimens are punched out of the sheets in different positions according to the test program or blanking program. The blanking tool itself is fitted with an automatic cup extractor.
- The specimen shape depends on the blanking tool installed. Various blanking tools can be used, entirely according to your requirements. The blanking tool is changed manually.
